Home › Hyundai › 2017 › Veloster Base, Standard Trans › Repair and Diagnosis (Single Page) › Brakes › Anti-Lock Brakes › Electronic Stability Control (ESC) System › ESC Control Module › Components And Components Location › Components

Components And Components Location: Components

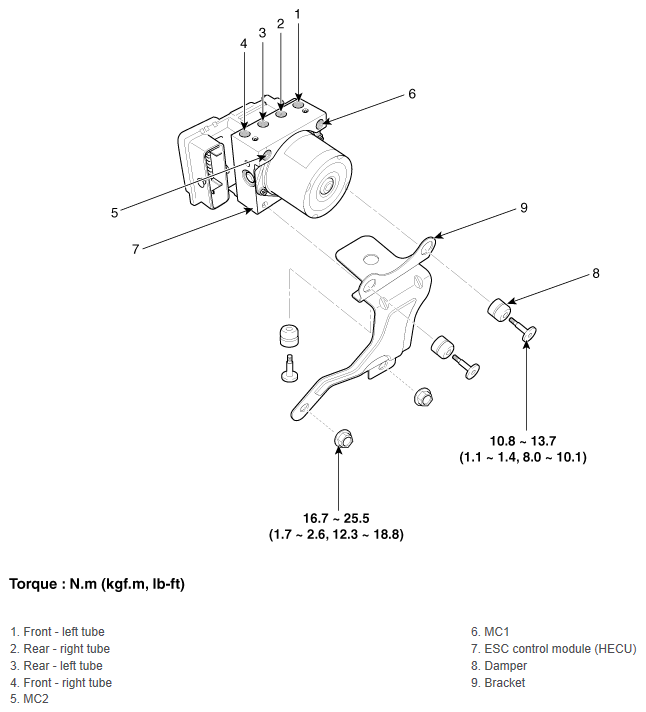

Fig 1: Locating ESC Control Module Components With Torque Specifications
G12125677Courtesy of HYUNDAI MOTOR AMERICA
