Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform: [ISG]

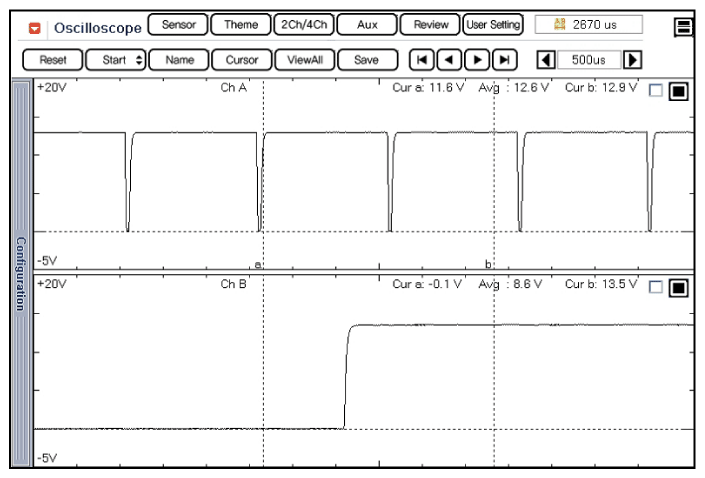

Fig 1: Scantool Display - Signal Waveform Of CKPS And CMPS (ISG)

Courtesy of HYUNDAI MOTOR AMERICA

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.
