Components And Components Location: Components

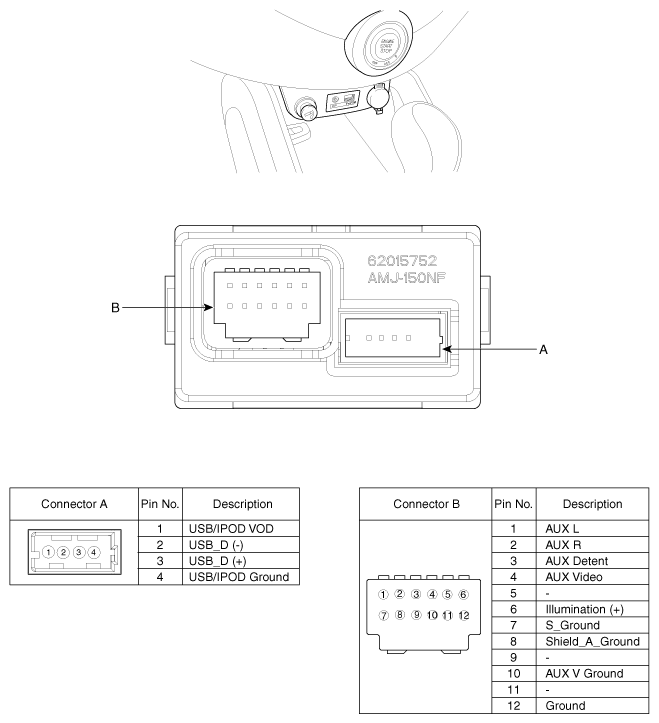

Fig 1: Multimedia Jack Components & Terminal Descriptions
G12126195Courtesy of HYUNDAI MOTOR AMERICA
