Antenna Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

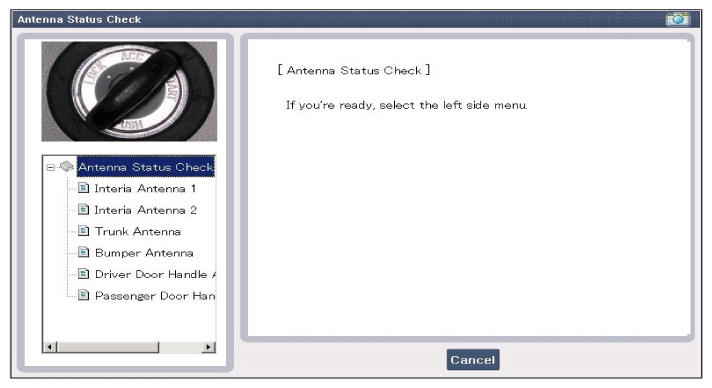

Fig 1: Screen Display - Selecting Antenna Status Check
Courtesy of HYUNDAI MOTOR AMERICA
After IG ON, select the "Antenna Status Check".

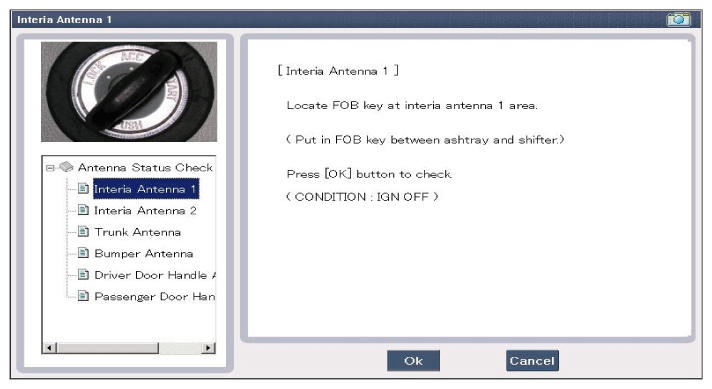

Fig 2: Screen Display - Selecting To Left Antenna Status Check
Courtesy of HYUNDAI MOTOR AMERICA
Set the smart key near the related antenna and operate it with a GDS.

Fig 3: Screen Display - Smart Key Related Interior Antenna
Courtesy of HYUNDAI MOTOR AMERICA

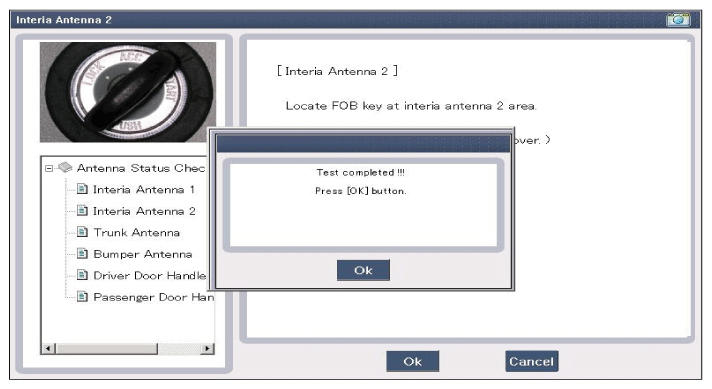

Fig 4: Screen Display - Interior Antenna Completed
Courtesy of HYUNDAI MOTOR AMERICA
If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
Antenna status
- INTERIOR Antenna 1
- INTERIOR Antenna 2
- Trunk antenna
- BUMPER/Antenna
- DRV_DR Antenna
- AST_DR Antenna
