Front Body A

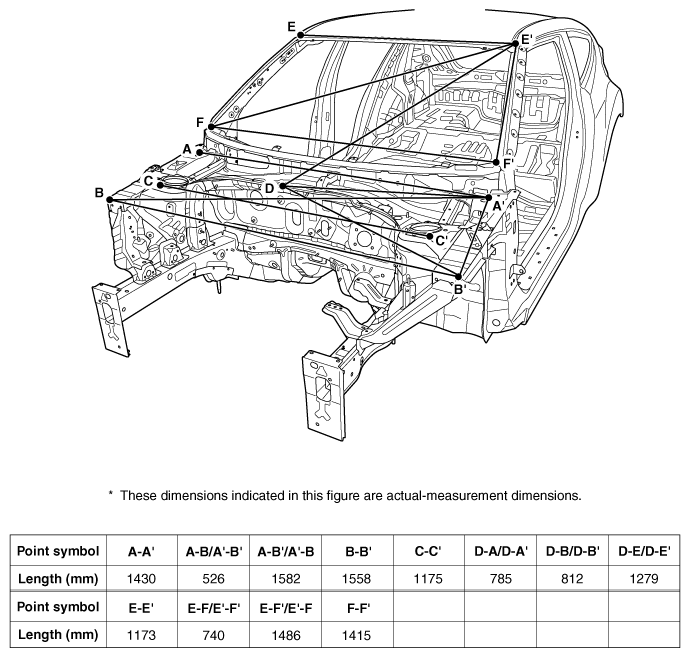

Fig 1: Front Body A Measurement Points Locations (1 Of 2)
G12125714Courtesy of HYUNDAI MOTOR AMERICA

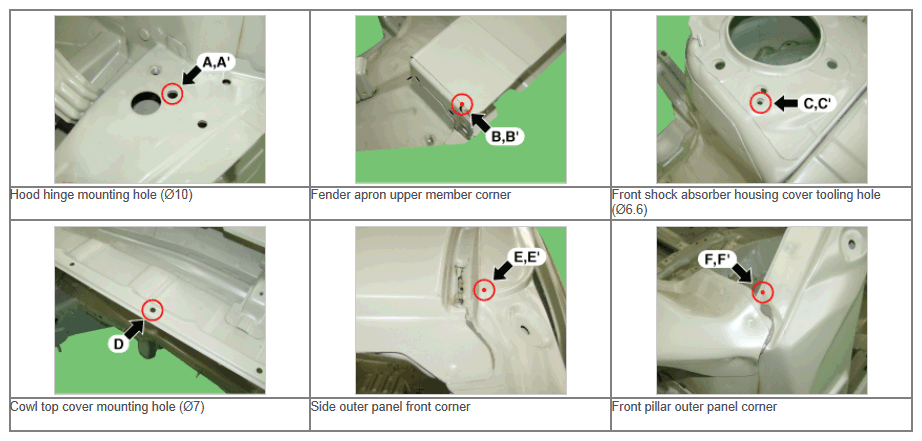

Fig 2: Front Body A Measurement Points Locations (2 Of 2)
G12125715Courtesy of HYUNDAI MOTOR AMERICA
