Front Body B

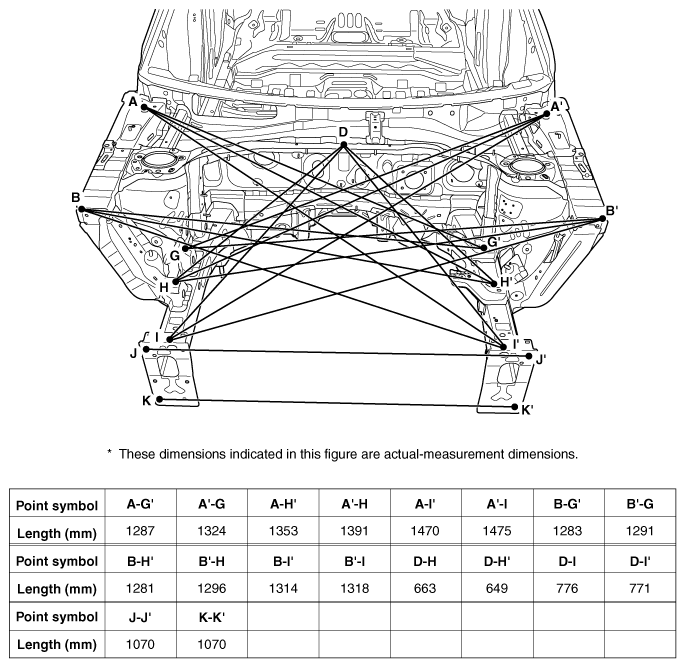

Fig 1: Front Body B Measurement Points Locations (1 Of 2)
G12125716Courtesy of HYUNDAI MOTOR AMERICA

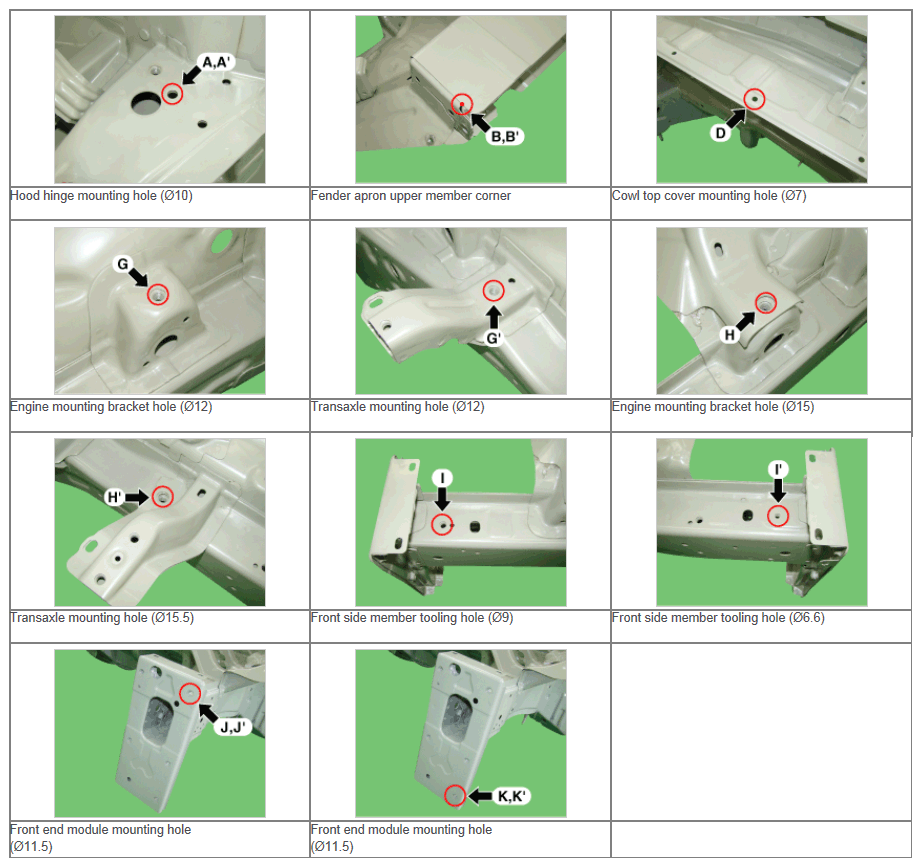

Fig 2: Front Body B Measurement Points Locations (2 Of 2)
G12125717Courtesy of HYUNDAI MOTOR AMERICA
