Interior A

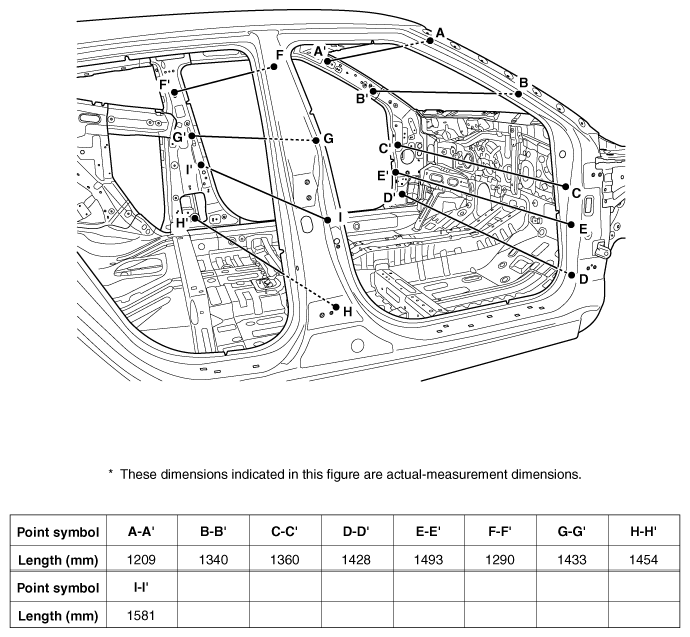

Fig 1: Interior A Measurement Points Locations (1 Of 3)
G12125728Courtesy of HYUNDAI MOTOR AMERICA

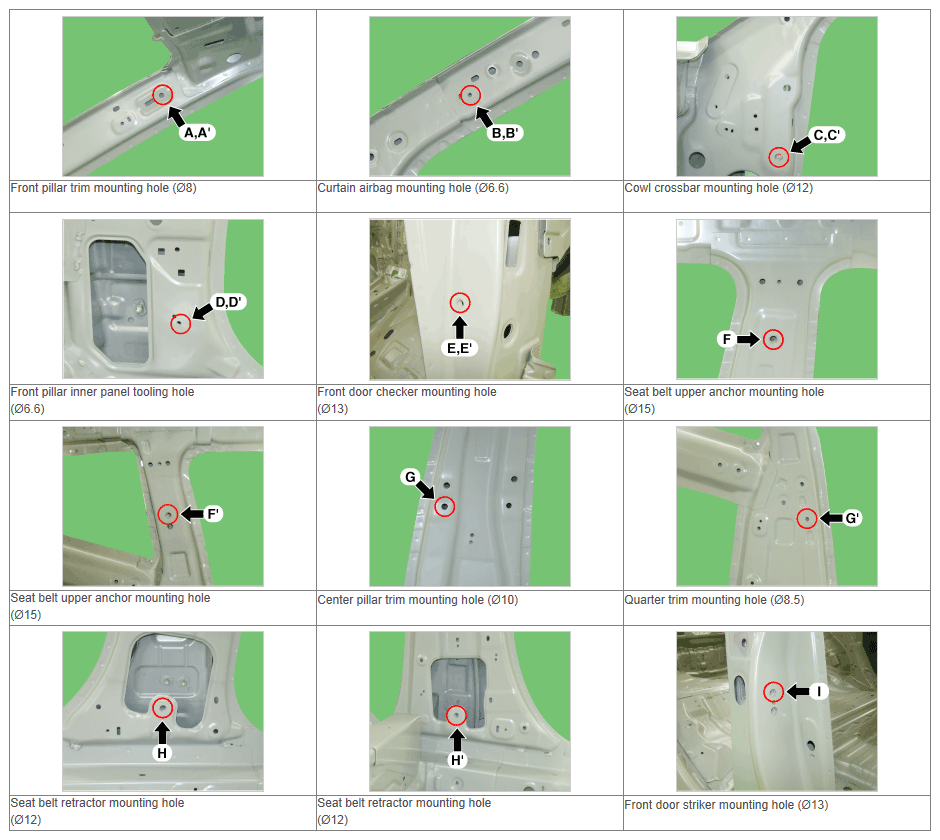

Fig 2: Interior A Measurement Points Locations (2 Of 3)
G12125729Courtesy of HYUNDAI MOTOR AMERICA

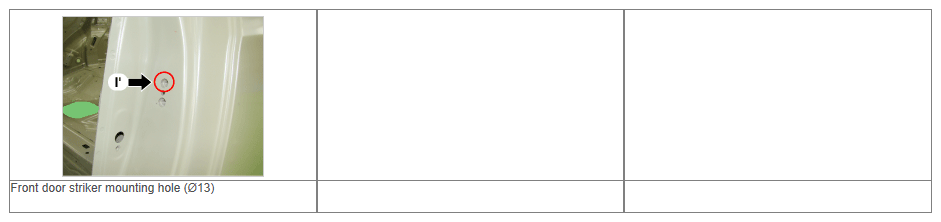

Fig 3: Interior A Measurement Points Locations (3 Of 3)
G12125730Courtesy of HYUNDAI MOTOR AMERICA
