Interior B

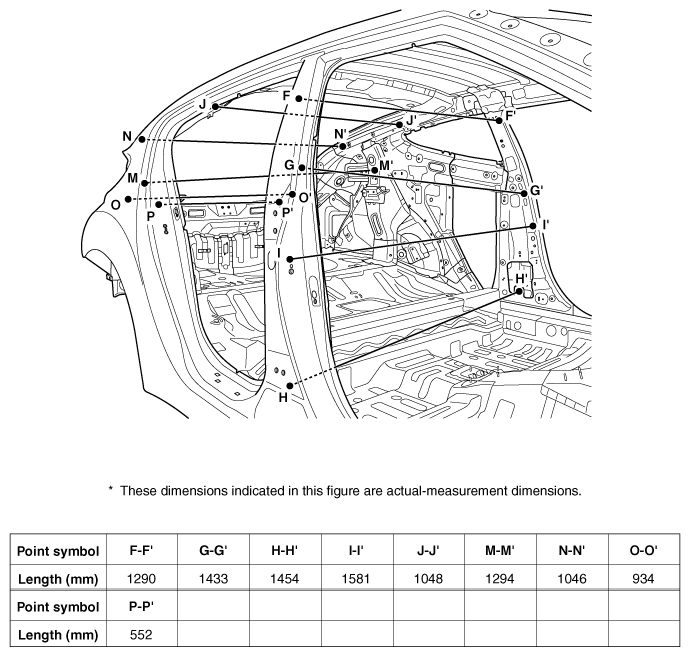

Fig 1: Interior B Measurement Points Locations (1 Of 3)
G12125731Courtesy of HYUNDAI MOTOR AMERICA

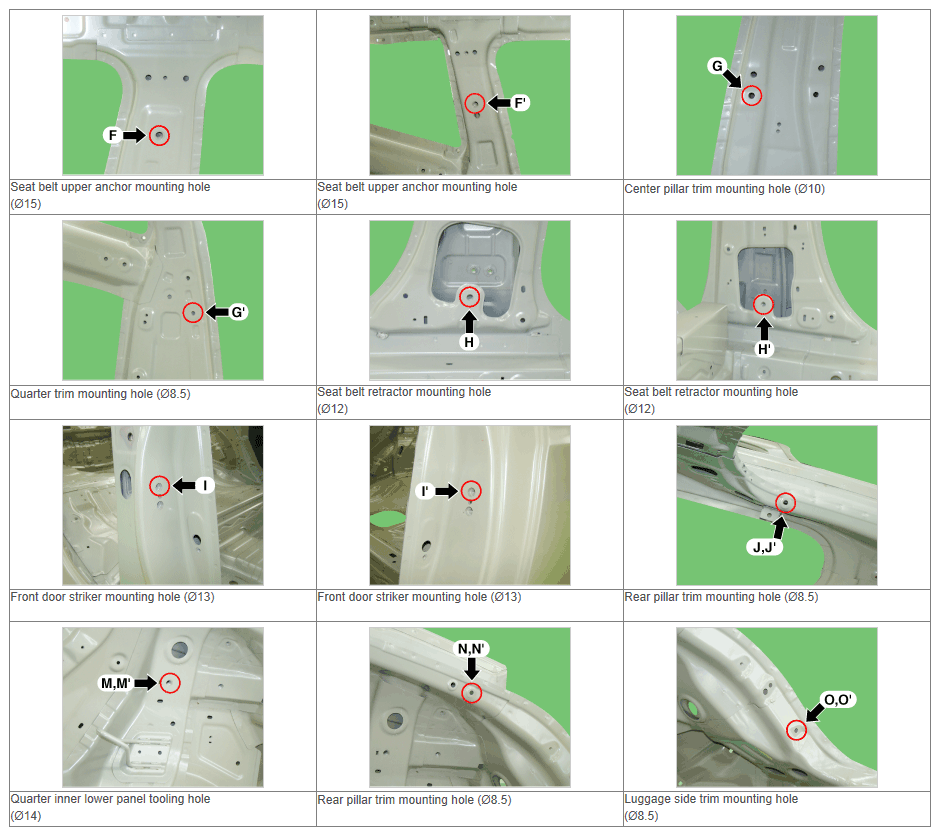

Fig 2: Interior B Measurement Points Locations (2 Of 3)
G12125732Courtesy of HYUNDAI MOTOR AMERICA

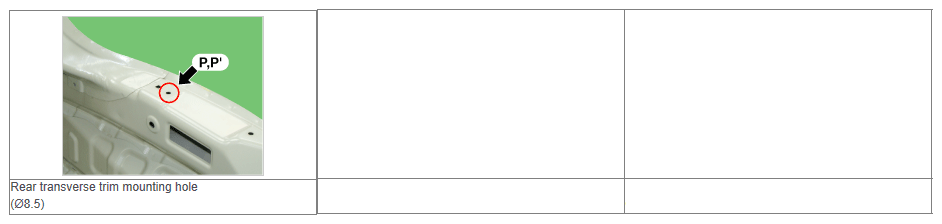

Fig 3: Interior B Measurement Points Locations (3 Of 3)
G12125733Courtesy of HYUNDAI MOTOR AMERICA
