Projected Dimensions
Projected Dimensions

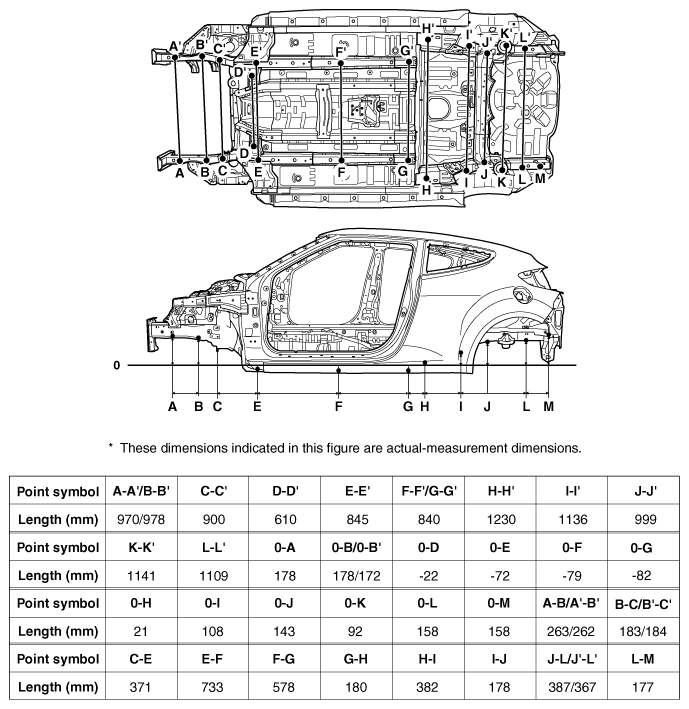

Fig 1: Locating Under Body Projected Dimensions (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

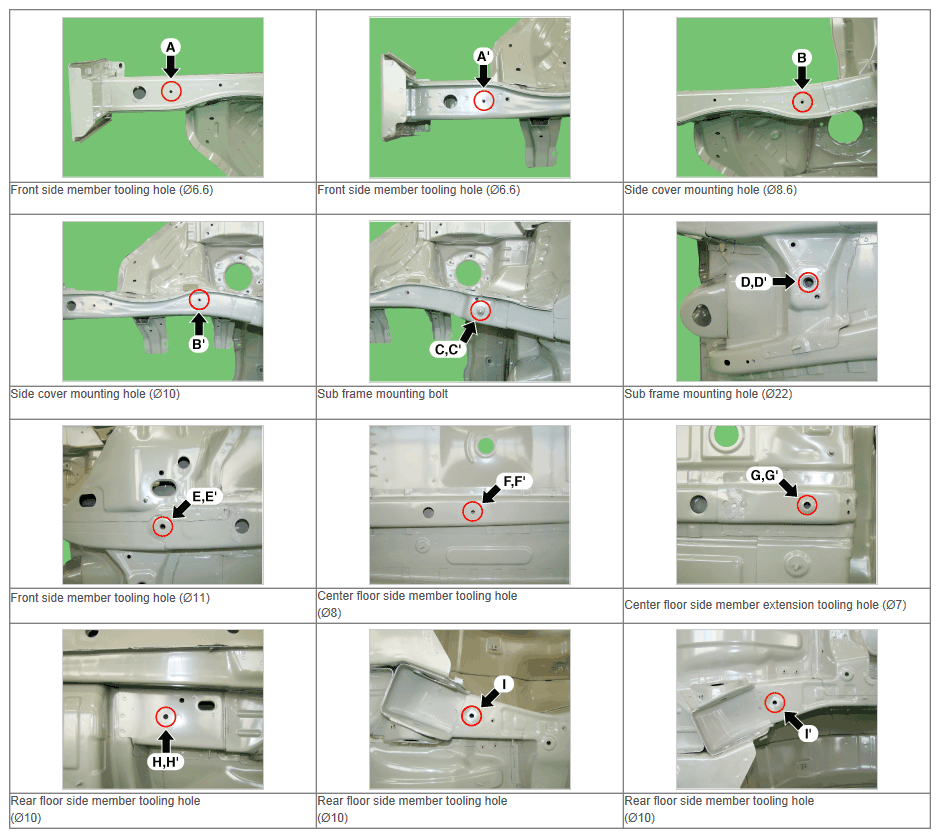

Fig 2: Locating Under Body Projected Dimensions (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

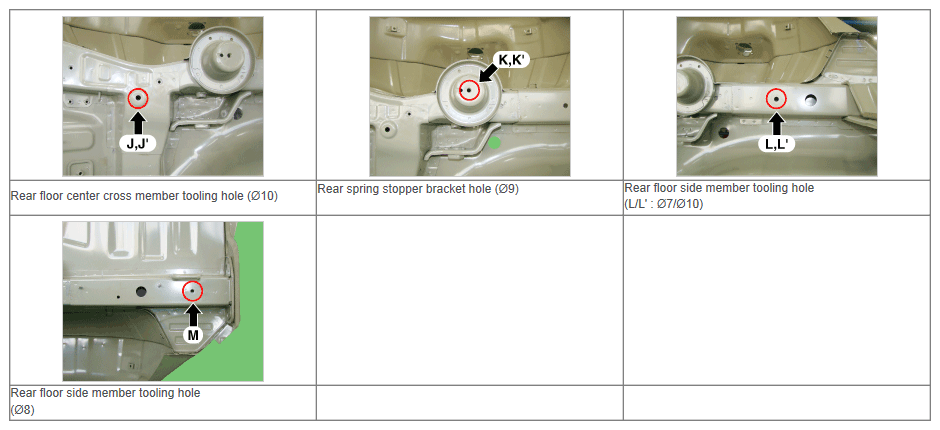

Fig 3: Locating Under Body Projected Dimensions (3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
