Components And Components Location: Components

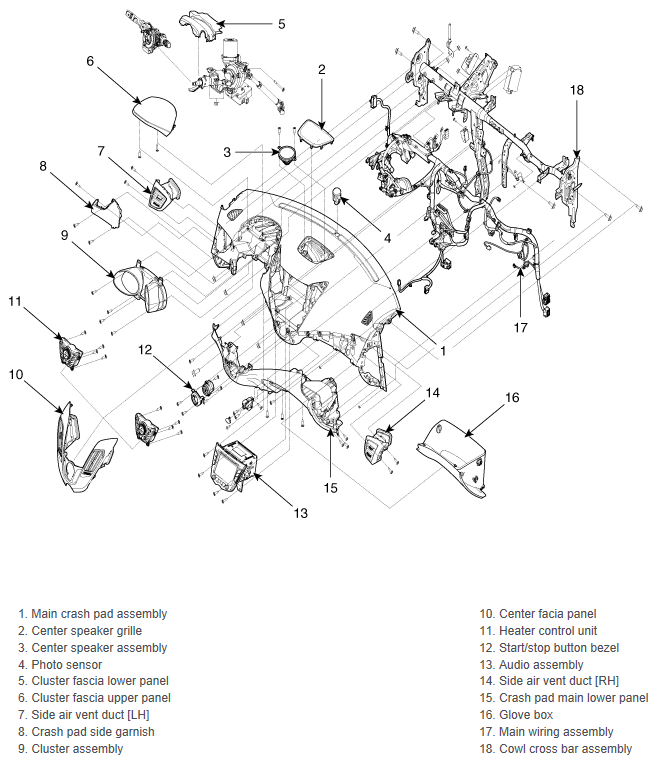

Fig 1: Locating Crash Pad Components
G12125913Courtesy of HYUNDAI MOTOR AMERICA
