Home › Hyundai › 2017 › Veloster Base, Standard Trans › Repair and Diagnosis › Body & Frame › Windows › Interior Trim And Glass › Interior Trim › Components And Components Location › Components › LH

Components And Components Location: Components: LH

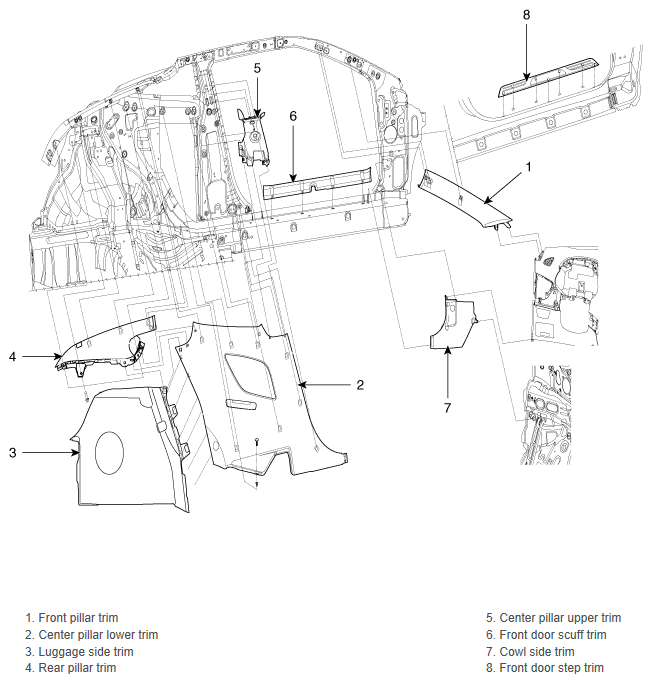

Fig 1: Locating Interior Trim Components (LH)
G12125969Courtesy of HYUNDAI MOTOR AMERICA
