Components And Components Location: Components: RH

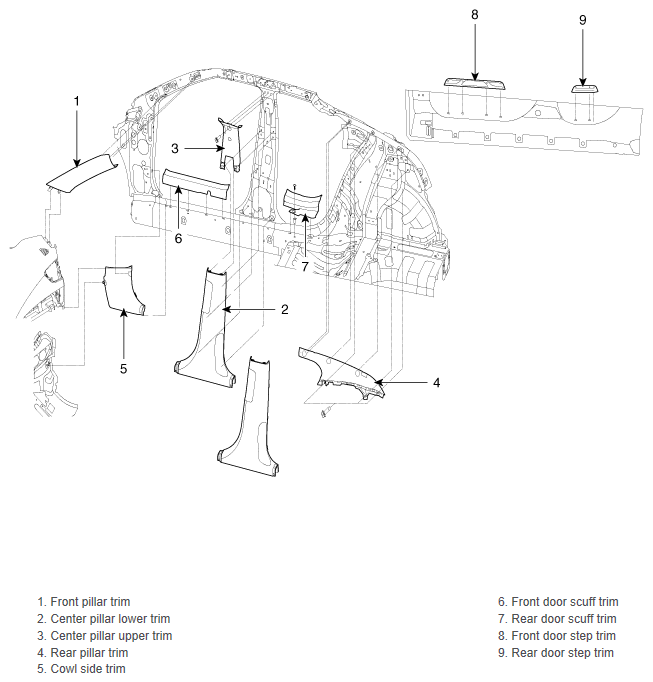

Fig 1: Locating Interior Trim Components (RH)
G12125968Courtesy of HYUNDAI MOTOR AMERICA
