Components And Components Location: Components

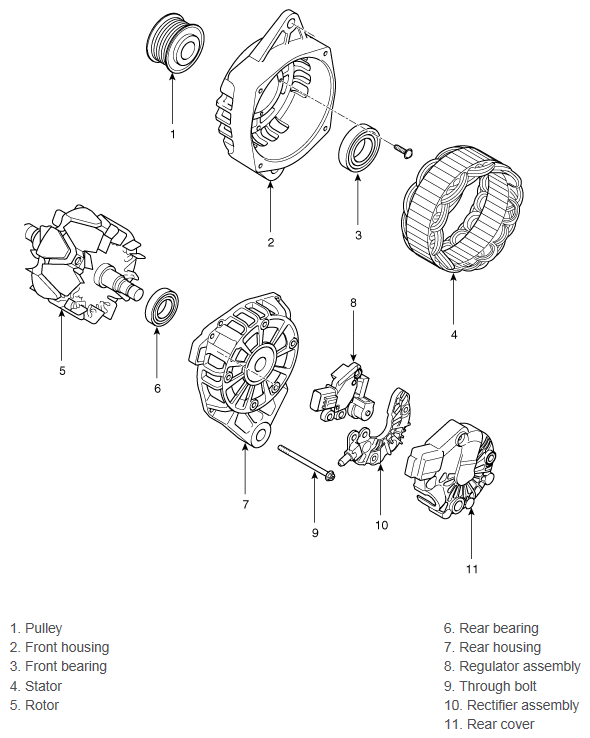

Fig 1: Locating Alternator Components
G12129291Courtesy of HYUNDAI MOTOR AMERICA
