Components And Components Location: Components

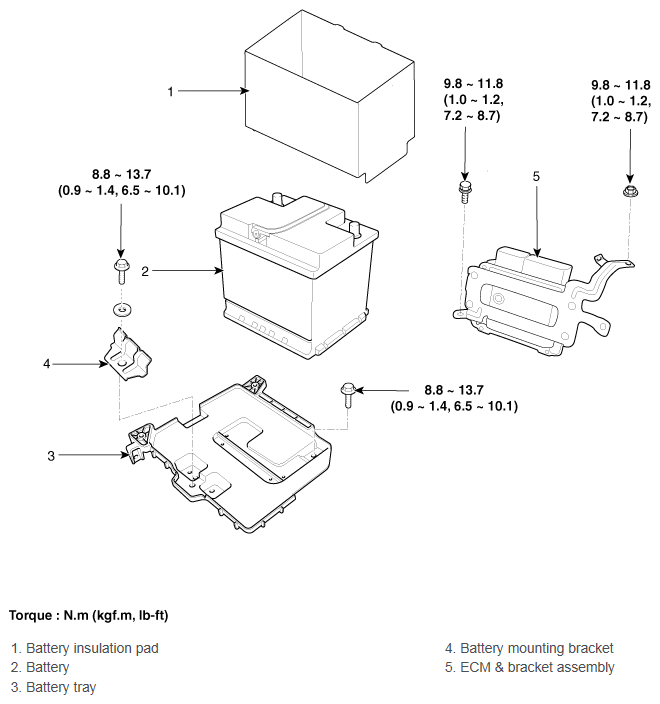

Fig 1: Locating Battery Components With Torque Specifications
G12129306Courtesy of HYUNDAI MOTOR AMERICA
