Components And Components Location: Components

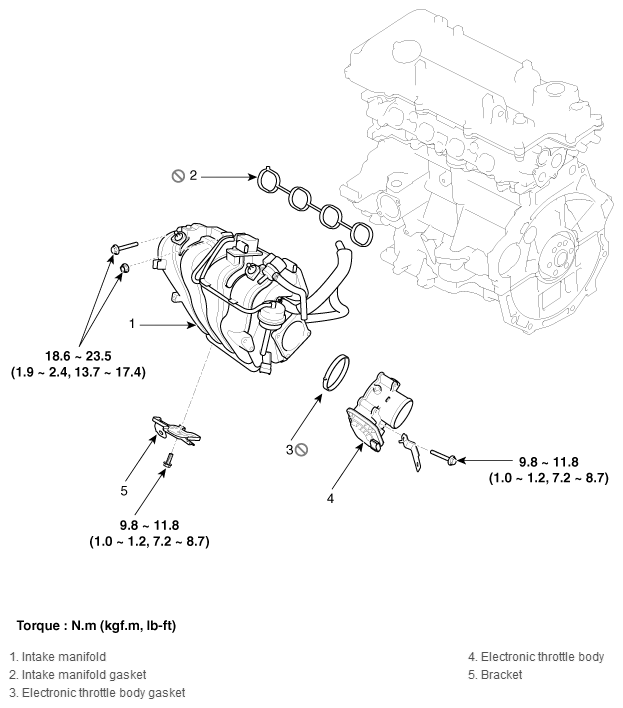

Fig 1: Locating Intake Manifold Components With Torque Specifications
G12129198Courtesy of HYUNDAI MOTOR AMERICA
