Components And Components Location: Components

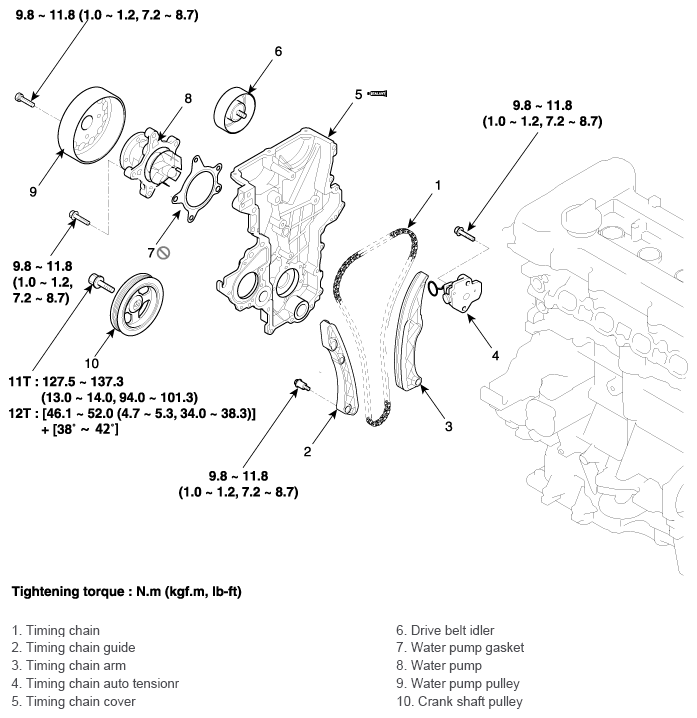

Fig 1: Locating Timing Chain Components With Torque Specifications
G12128947Courtesy of HYUNDAI MOTOR AMERICA
