Wave Form

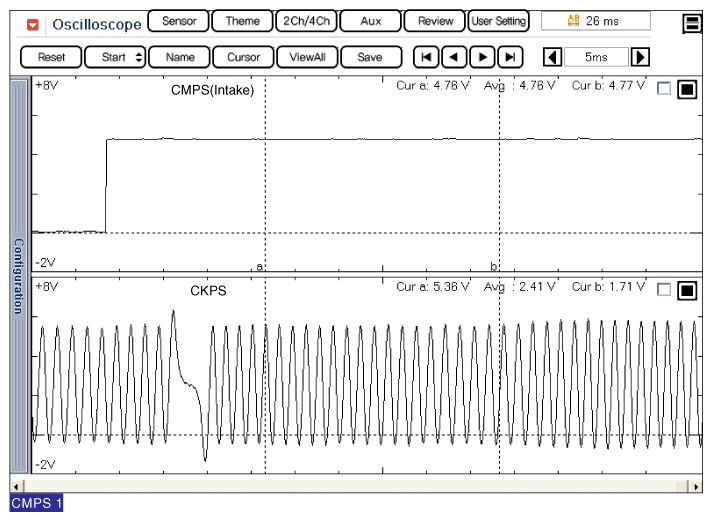

Fig 1: Scantool Display - Signal Waveform Of CKPS And CMPS (1 Of 2)
G12129415Courtesy of HYUNDAI MOTOR AMERICA

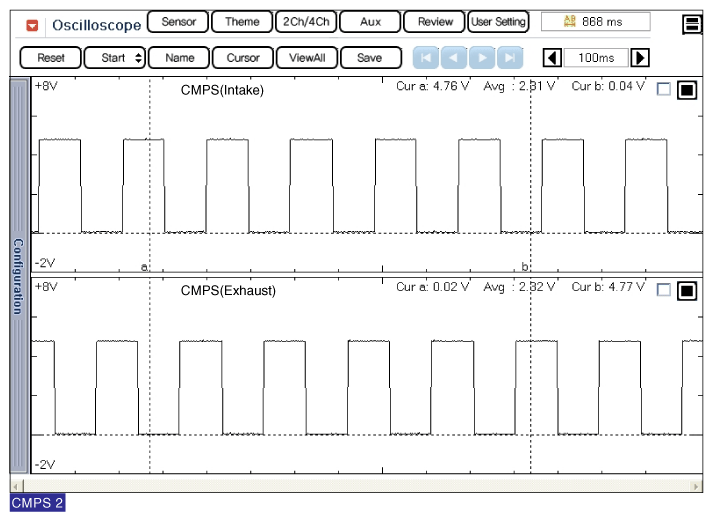

Fig 2: Scantool Display - Signal Waveform Of CKPS And CMPS (2 Of 2)
G12129416Courtesy of HYUNDAI MOTOR AMERICA
