Hyundai
›
2017
›
Veloster Base, Standard Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 1.6L GDI
›
Purge Control Solenoid Valve (PCSV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

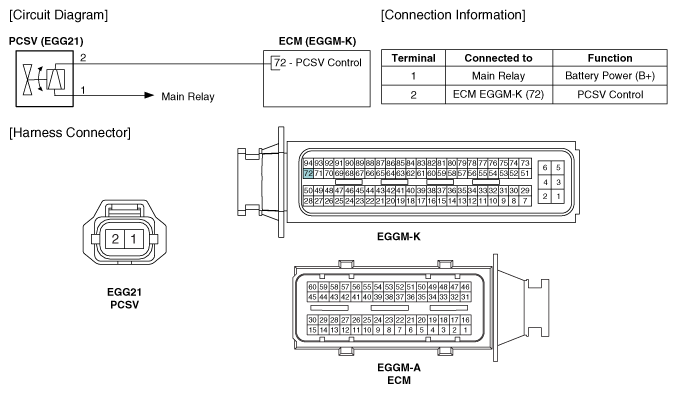

Fig 1: Purge Control Solenoid Valve Circuit And Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
