Components And Components Location: Components

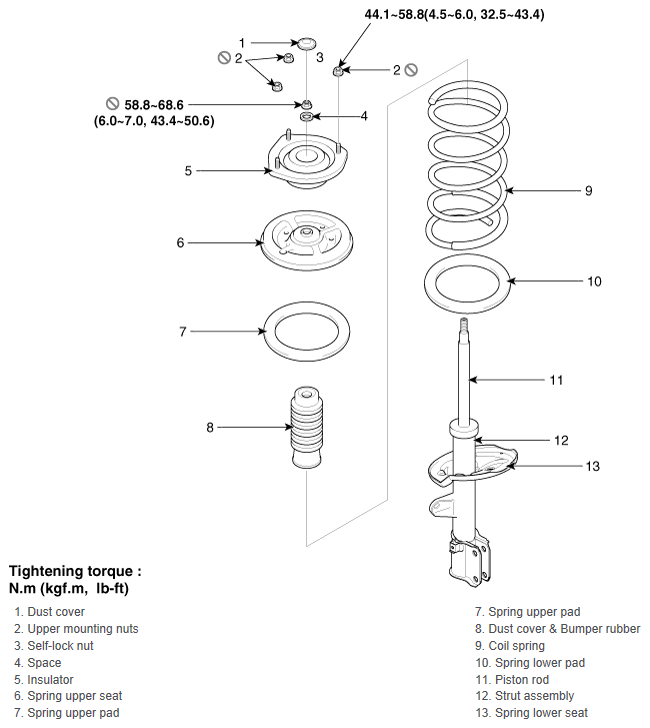

Fig 1: Locating Front Strut Assembly Components With Torque Specifications
G12125232Courtesy of HYUNDAI MOTOR AMERICA
