Components And Components Location: Components

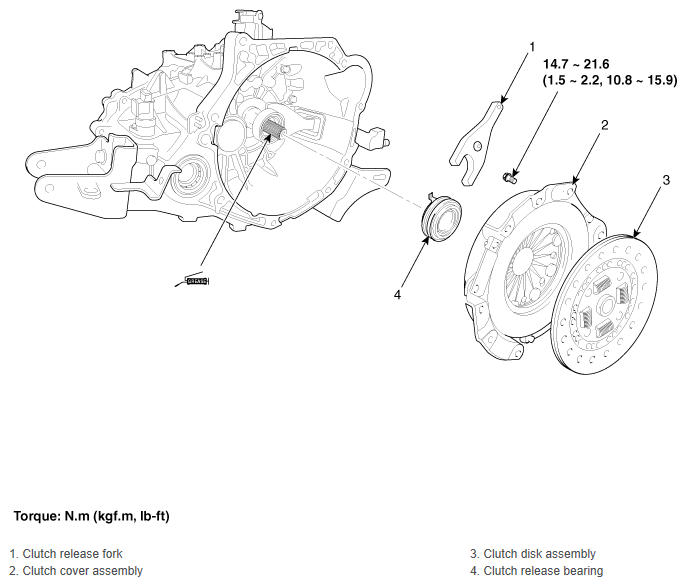

Fig 1: Locating Clutch Cover & Disc Components With Torque Specifications
G12124917Courtesy of HYUNDAI MOTOR AMERICA
