Components And Components Location: Components

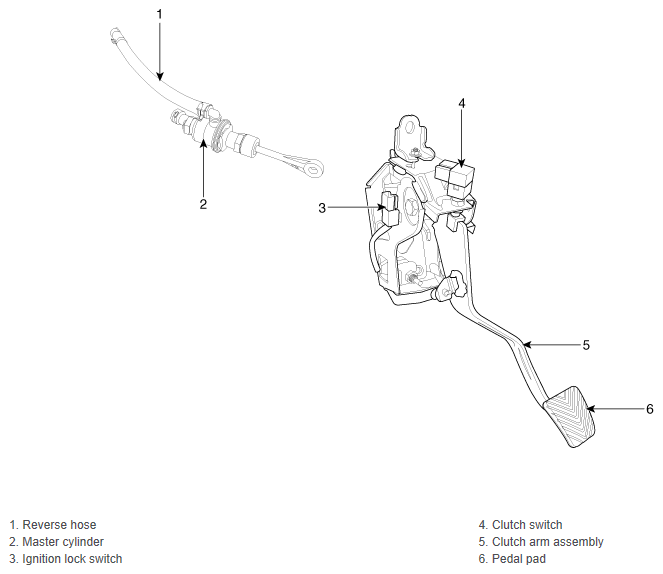

Fig 1: Clutch Pedal Components Location
G12124929Courtesy of HYUNDAI MOTOR AMERICA
