Engine Control System - 1.6L T-GDI
›
Components And Components Location
›
Components Location
Components Location

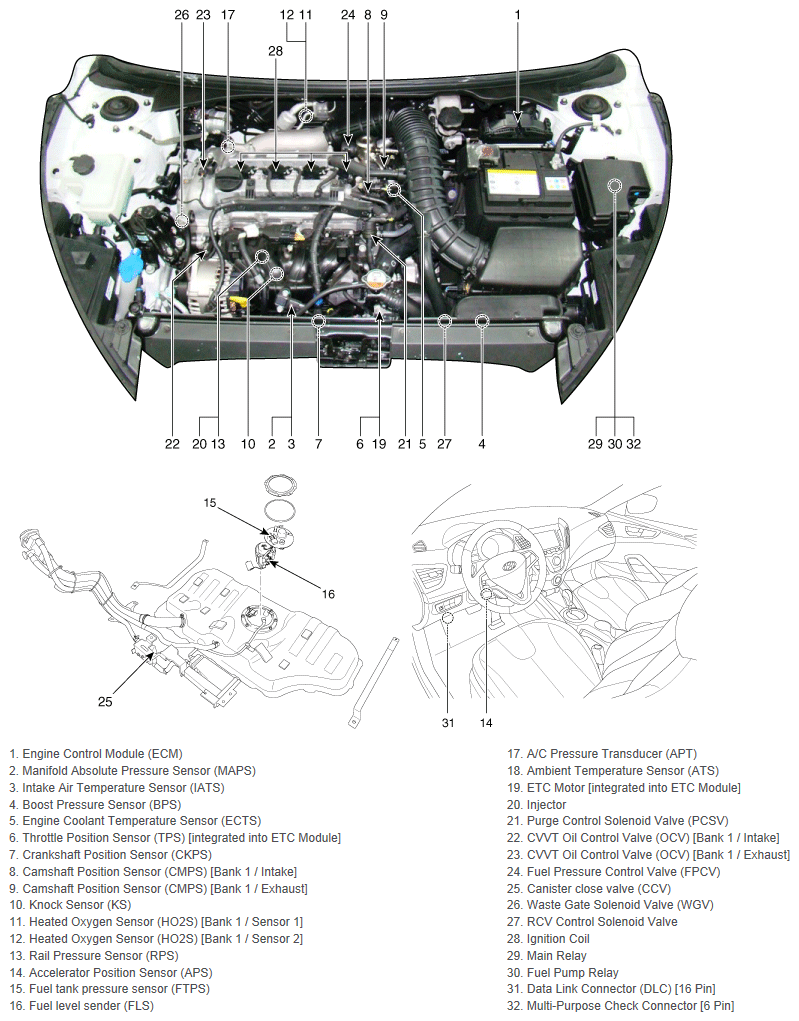

Fig 1: Locating Engine Control System Components (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

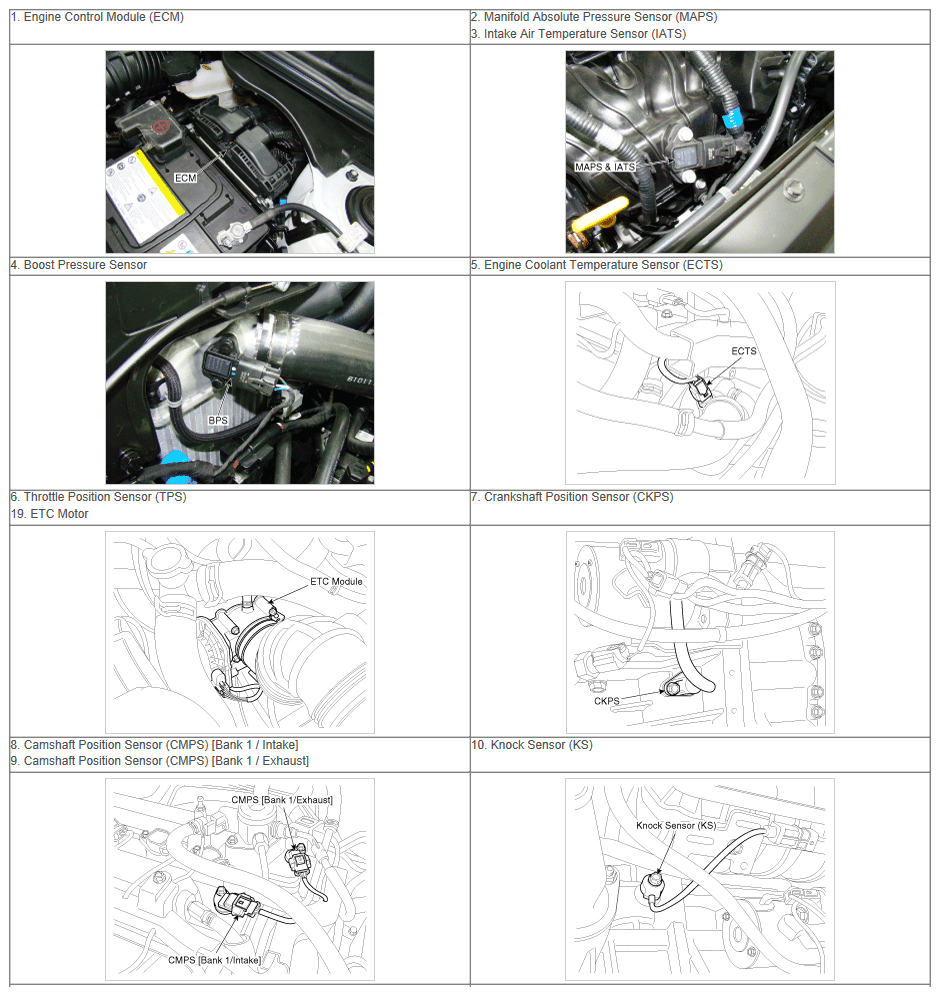

Fig 2: Locating Engine Control System Components (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

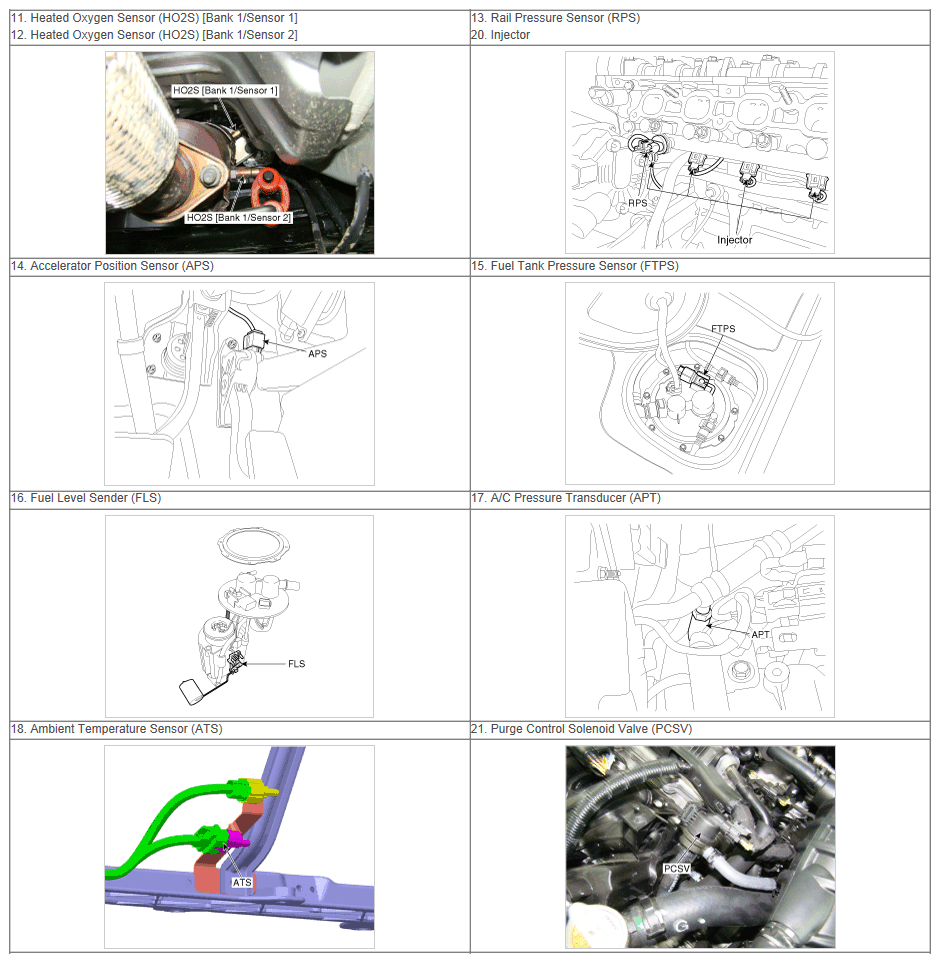

Fig 3: Locating Engine Control System Components (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

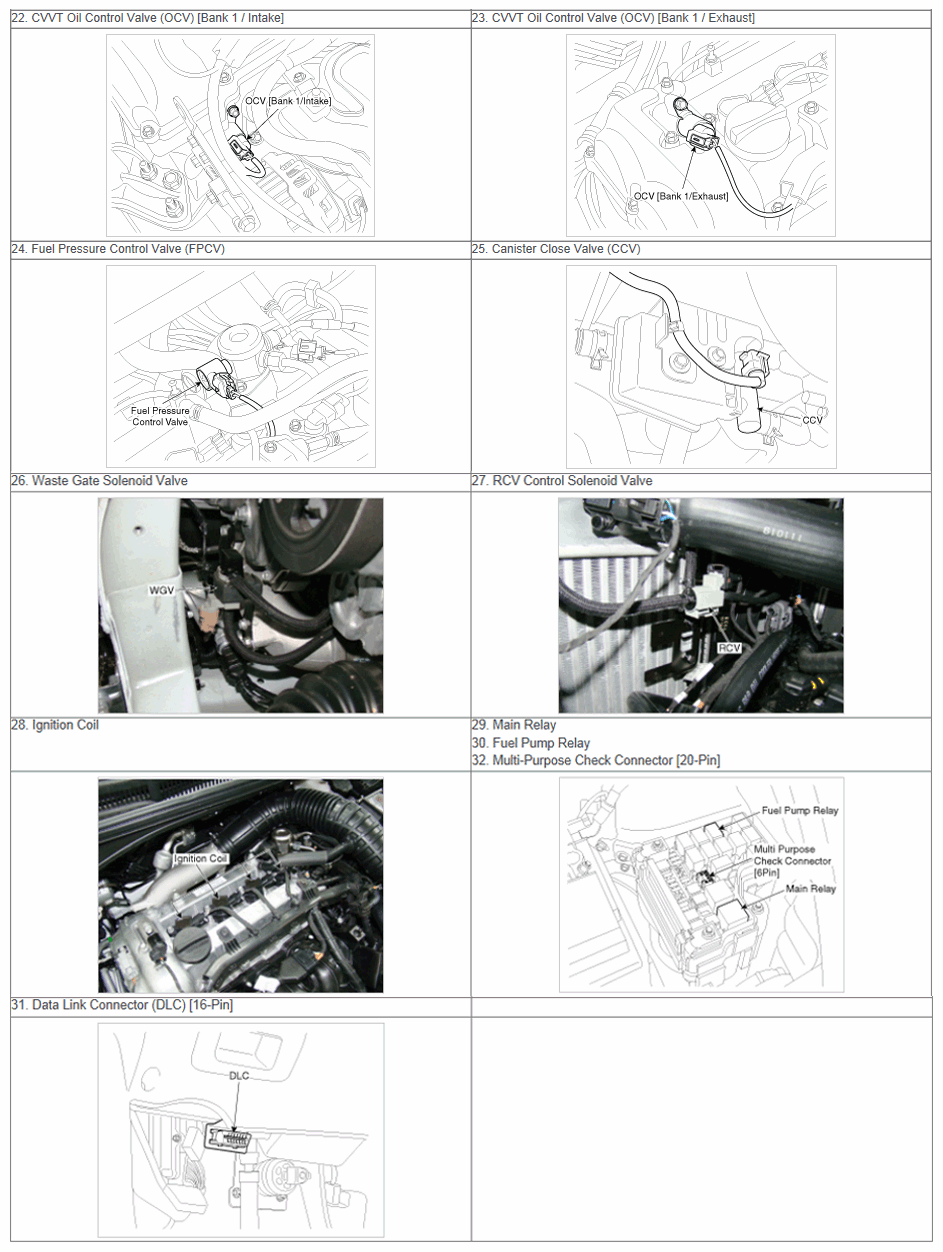

Fig 4: Locating Engine Control System Components (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
