Components And Components Location: Components

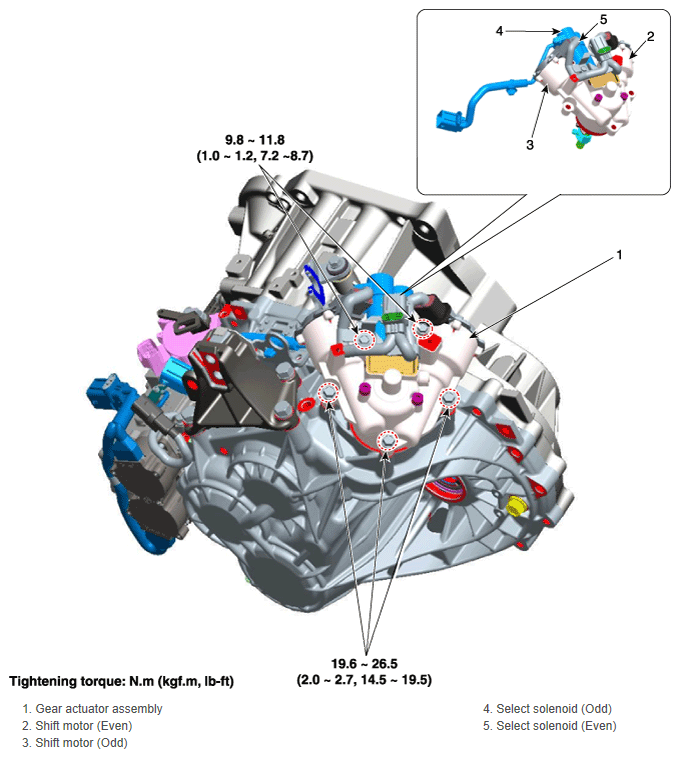

Fig 1: Gear Actuator Assembly Components With Torque Specifications
G12125071Courtesy of HYUNDAI MOTOR AMERICA
