Home › Hyundai › 2017 › Veloster Turbo, Automatic DCT Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Transmission Control System - 1.6L T-GDI › Inhibitor Switch › Components And Components Location › Components

Components And Components Location: Components

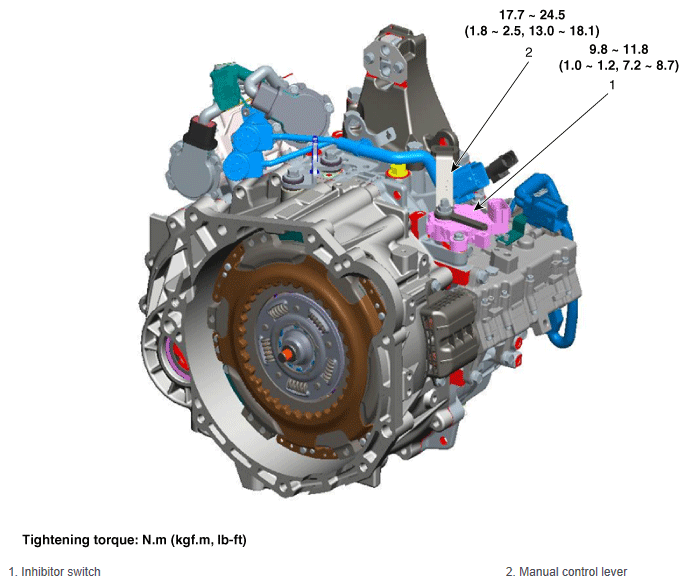

Fig 1: Inhibitor Switch Components With Torque Specifications
G12125095Courtesy of HYUNDAI MOTOR AMERICA
