Components And Components Location: Components

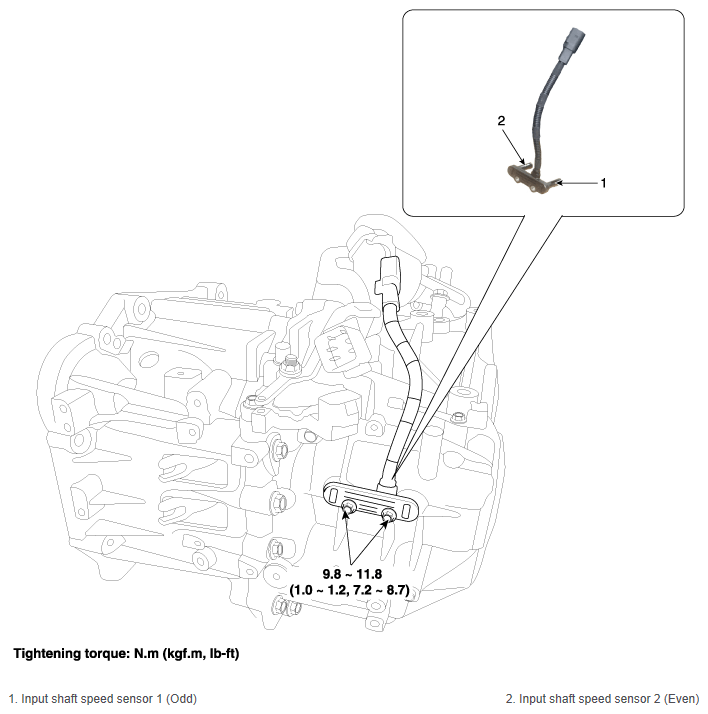

Fig 1: Input Shaft Speed Sensor 1 Components With Torque Specifications
G12125081Courtesy of HYUNDAI MOTOR AMERICA
