Components And Components Location: Components

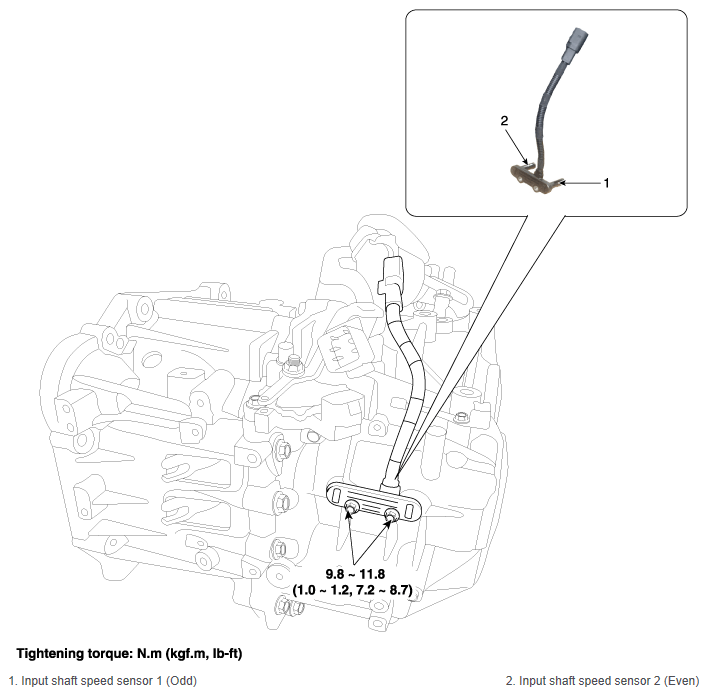

Fig 1: Input Shaft Speed Sensor 2 Components With Torque Specifications
G12125088Courtesy of HYUNDAI MOTOR AMERICA
