Components And Components Location: Components

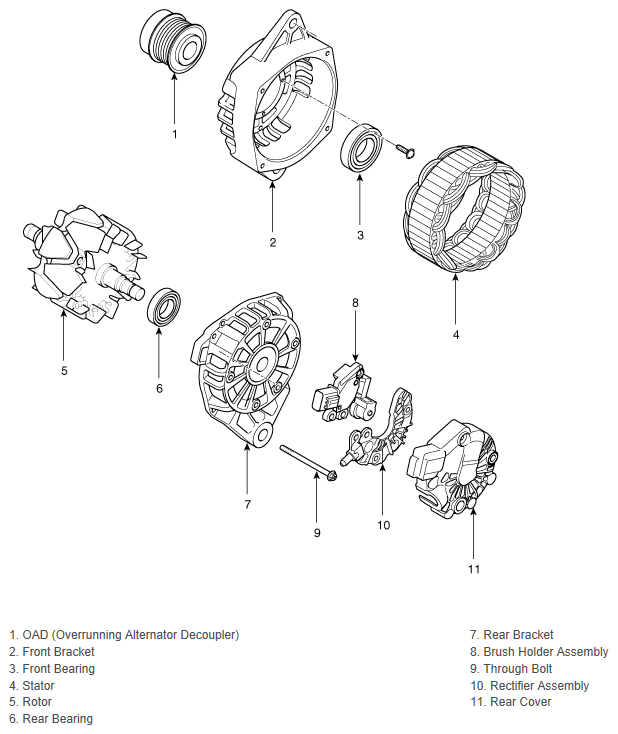

Fig 1: Exploded View Of Alternator
G12124623Courtesy of HYUNDAI MOTOR AMERICA
