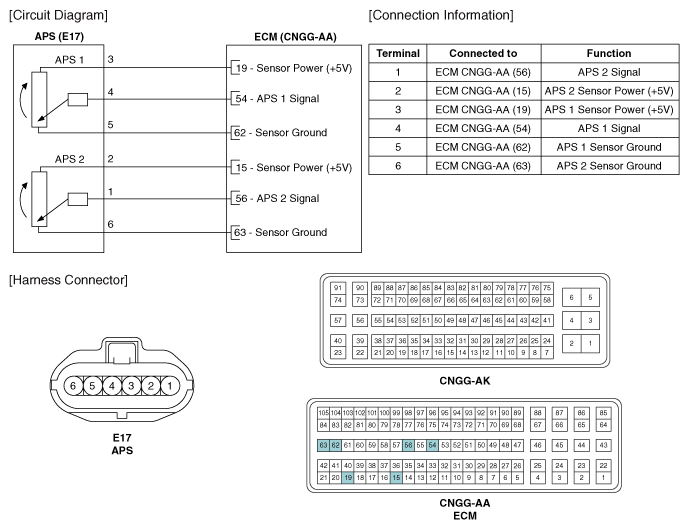

Home › Hyundai › 2017 › Veloster Turbo, Standard Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L T-GDI › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram › A/T
