Components And Components Location: Components

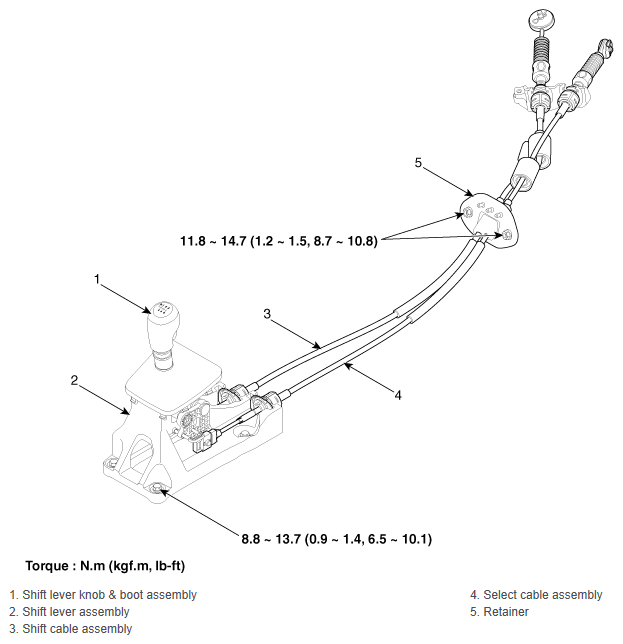

Fig 1: Control Cable Components With Torque Specifications
G12124977Courtesy of HYUNDAI MOTOR AMERICA
