Home › Hyundai › 2017 › Veloster Turbo, Standard Trans › Repair and Diagnosis › Transmission › Manual Trans › Manual Transaxle Control System - 1.6L T-GDI › Shift Lever › Components And Components Location › Components

Components And Components Location: Components

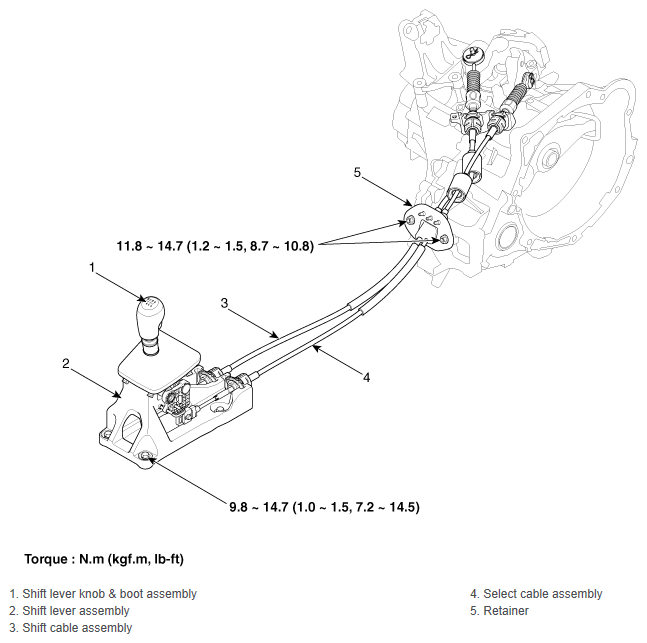

Fig 1: Shift Lever Components With Torque Specifications
G12124972Courtesy of HYUNDAI MOTOR AMERICA
