Circuit Diagram

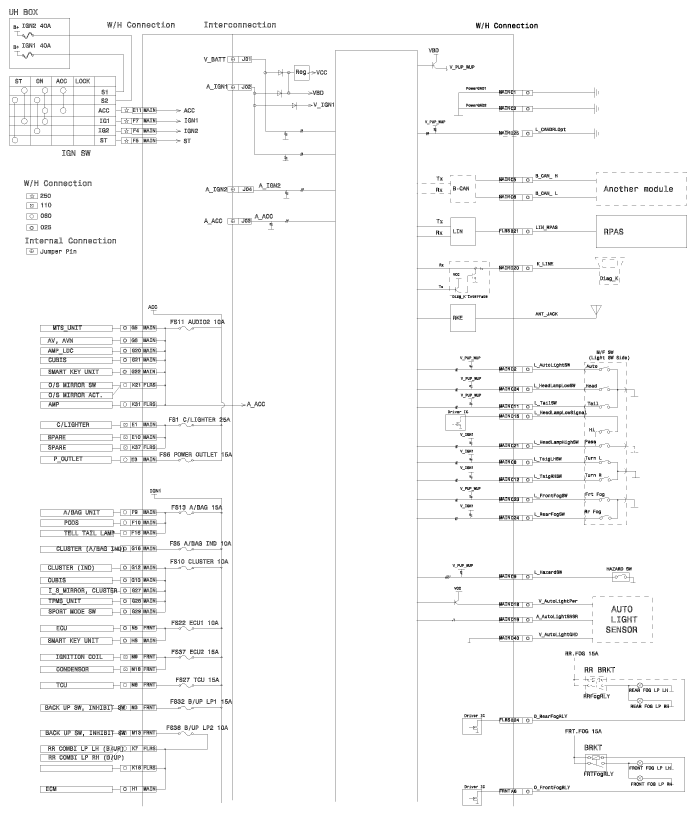

Fig 1: BCM Circuit Diagram (1 Of 4)
G12126316Courtesy of HYUNDAI MOTOR AMERICA

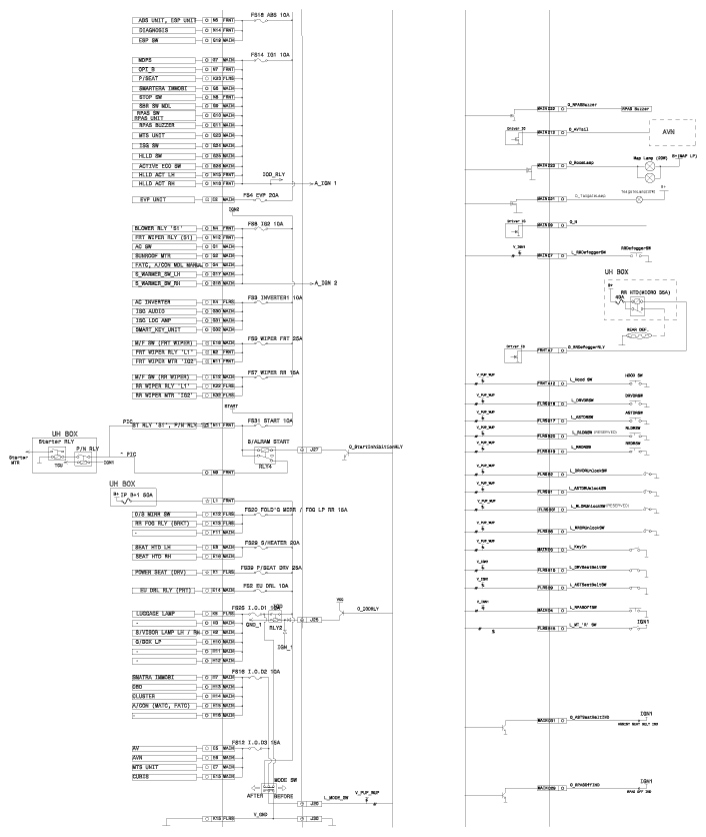

Fig 2: BCM Circuit Diagram (2 Of 4)
G12126317Courtesy of HYUNDAI MOTOR AMERICA

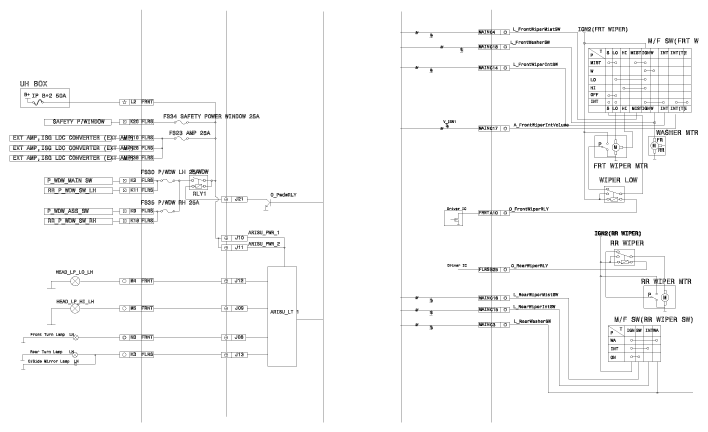

Fig 3: BCM Circuit Diagram (3 Of 4)
G12126318Courtesy of HYUNDAI MOTOR AMERICA

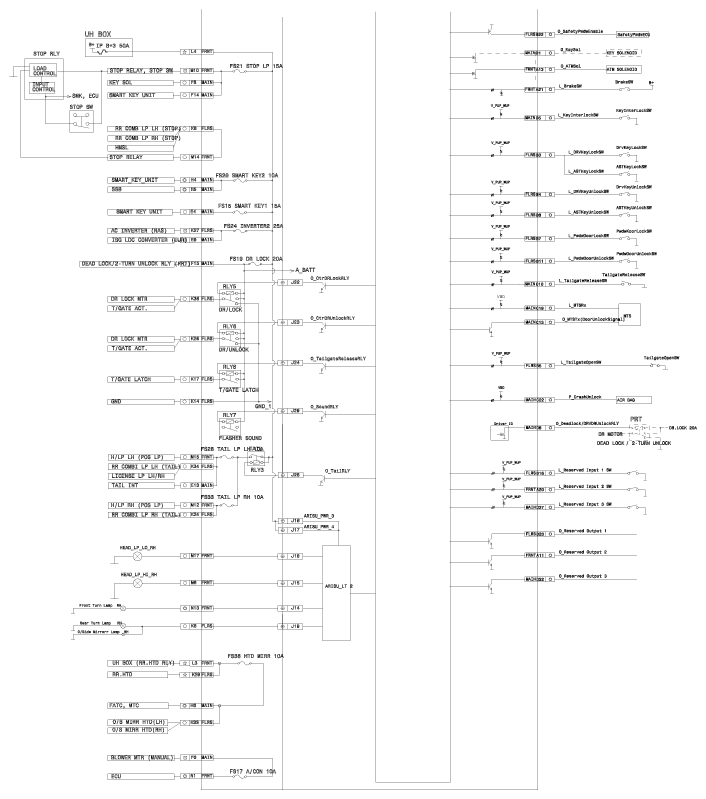

Fig 4: BCM Circuit Diagram (4 Of 4)
G12126319Courtesy of HYUNDAI MOTOR AMERICA
