Veloster Value Edition
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 1.6L GDI
›
ETC (Electronic Throttle Control) System
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

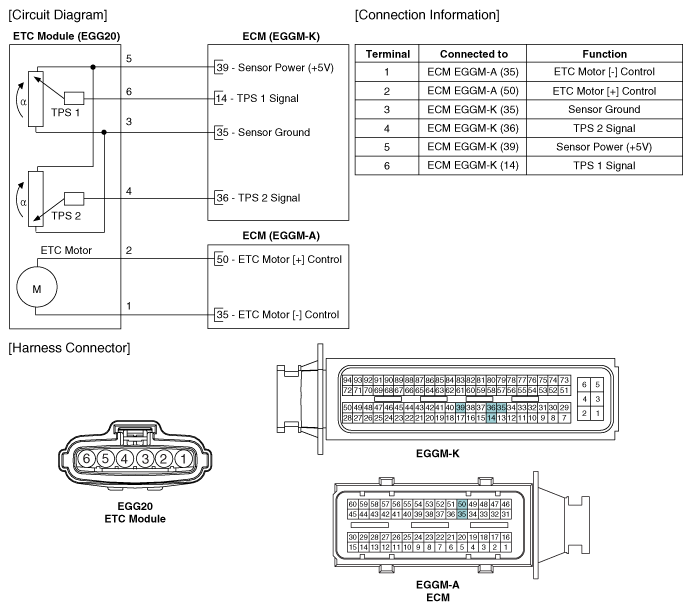

Fig 1: Electronic Throttle Control System Circuit And Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
