Repair Procedures: Removal: Battery

  1. Turn the ignition switch OFF.
  2. Disconnect the battery (-) terminal (A).

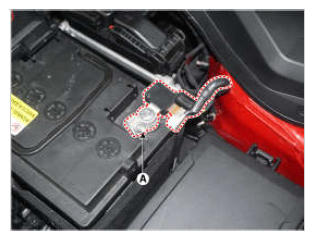

    G12594551Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the battery (+) terminal (B).

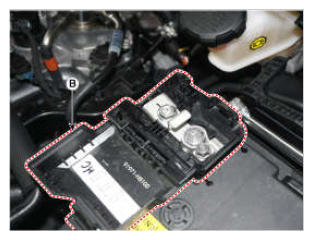

    G12594552Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the battery insulation pad (A).
  5. Remove the battery (B) after removing the mounting bracket.

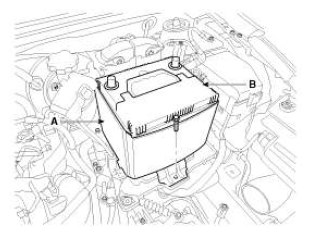

    G12594553Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the battery.
