Components And Components Location: Components

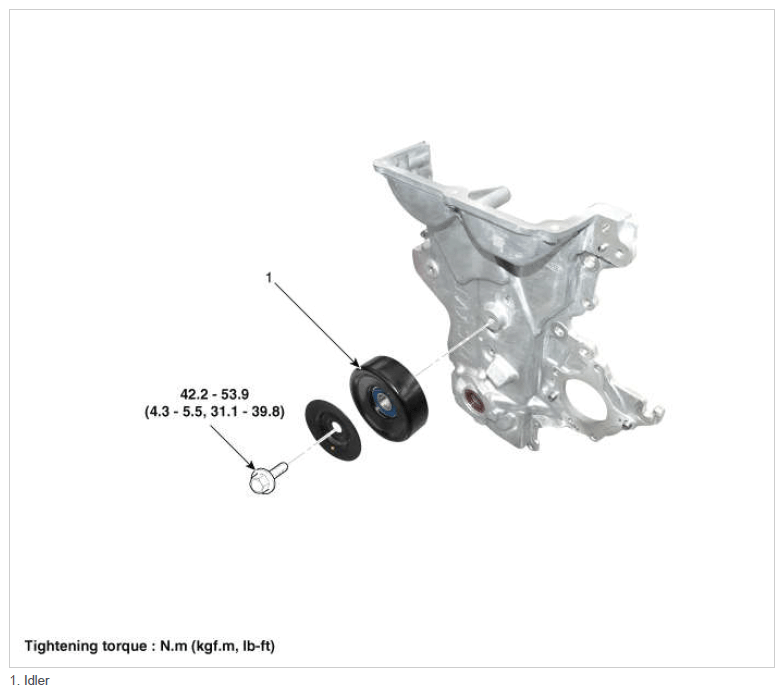

Fig 1: Locating Idler Component With Torque Specification
G12594153Courtesy of HYUNDAI MOTOR AMERICA
