Components And Components Location: Components

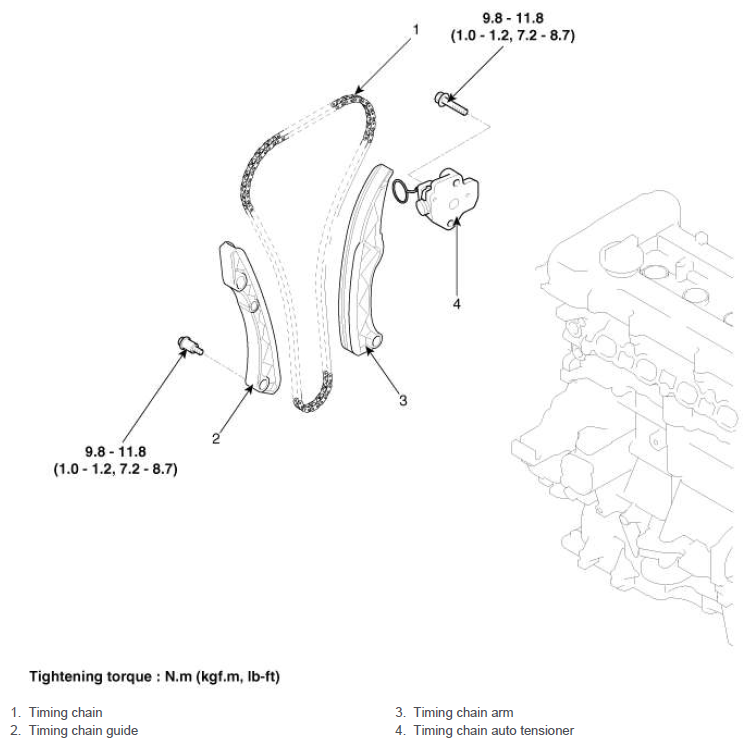

Fig 1: Locating Timing Chain Components With Torque Specification
G12594172Courtesy of HYUNDAI MOTOR AMERICA
