[Bank 1 / Exhaust]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

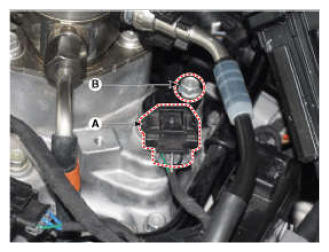

  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the hanger and the protector.
  4. Remove the installation bolt (B), and then remove the sensor.
G12598517Courtesy of HYUNDAI MOTOR AMERICA
