Repair Procedures: Removal

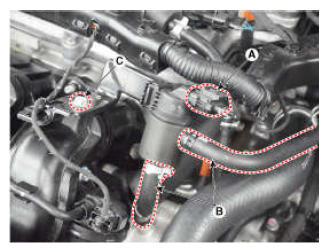

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  4. Remove the valve after removing the bolt (C).
G12598567Courtesy of HYUNDAI MOTOR AMERICA
