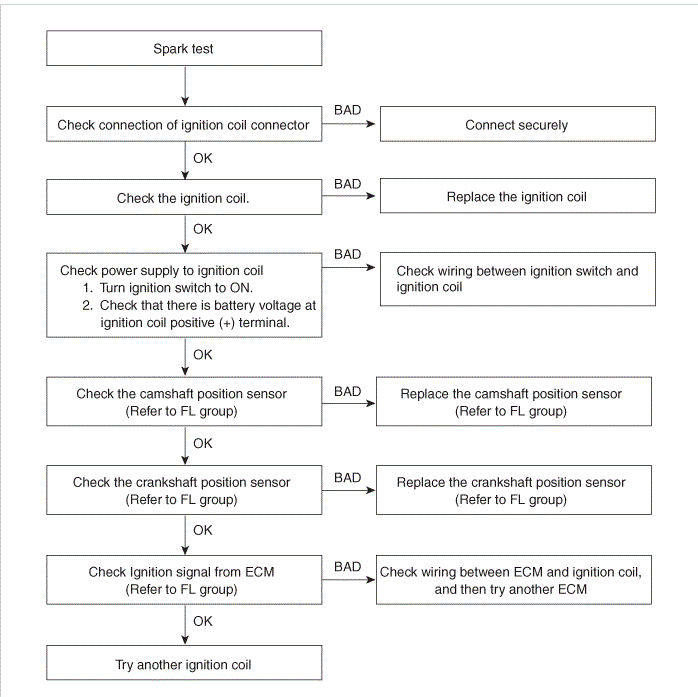

Spark Test

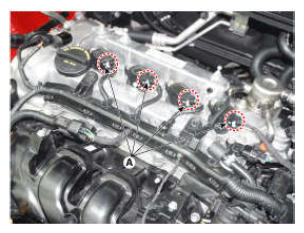

- Disconnect the connectors (A) and then ignition coils (B).

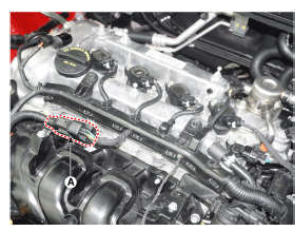

- Disconnect the injector extension connector (A) for fuel not to be injected while checking.
- Using a spark plug socket, remove the spark plug.
- Install the spark plug to the ignition coil.
- Ground the spark plug to the engine.
- Check if spark occurs while engine is being cranked.NOTE:
- Do Not crank engine for more then 5-10 seconds.
- Inspect all the spark plugs.
- Using a spark plug socket, install the spark plug.
- Install the ignition coil.
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)
- Reconnect the ignition coil connector.
