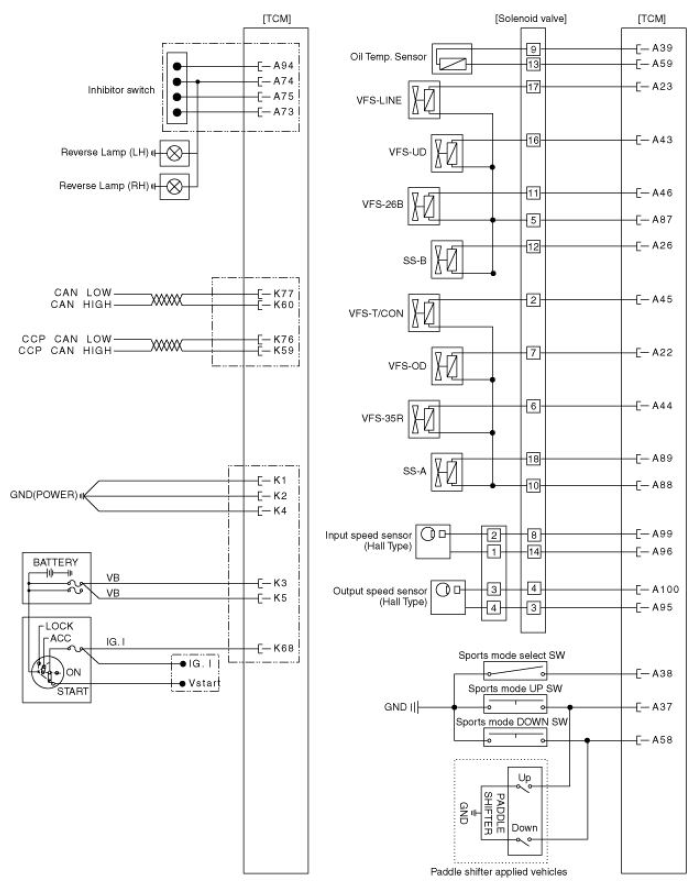

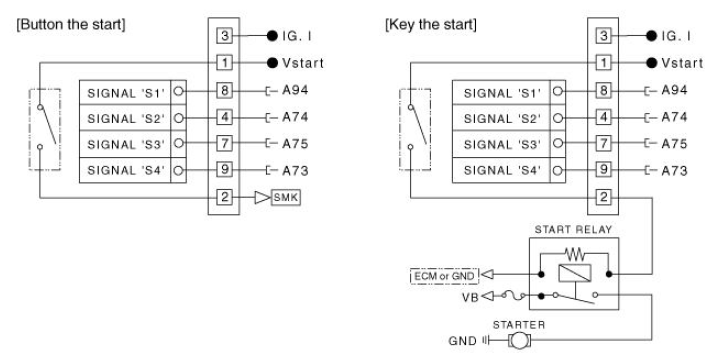

Home › Hyundai › 2018 › Accent Limited › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Transaxle Control Module (TCM) › Schematic Diagrams › Circuit Diagram
