Hyundai
›
2018
›
Accent SE, Automatic Trans
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Power Windows
›
Power Window Switch
›
Schematic Diagrams
›
Circuit Diagram
›

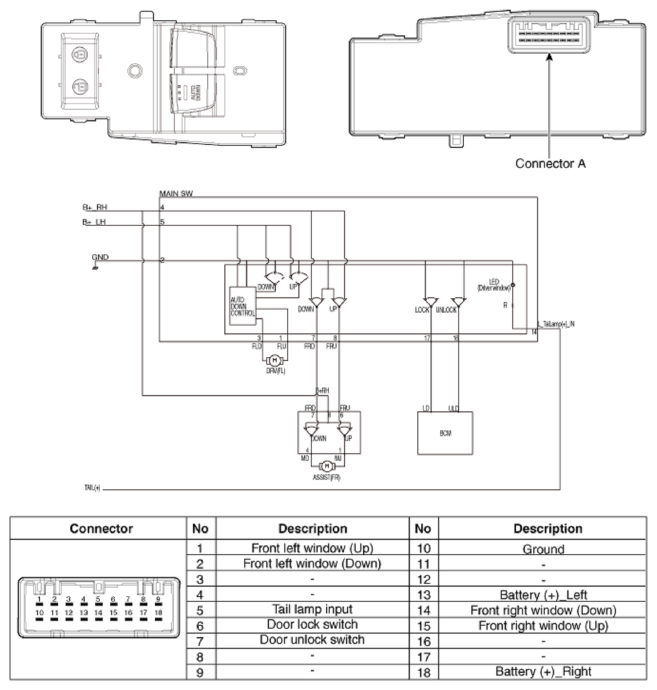

Main Power Window Switch (Front, Driver Auto Down)
Main Power Window Switch (Front, Driver Auto Down)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
