Home › Hyundai › 2018 › Accent SE, Automatic Trans › Repair and Diagnosis › Engine Mechanical › Lubrication System › Oil Pan › Components And Components Location › Components

Components And Components Location: Components

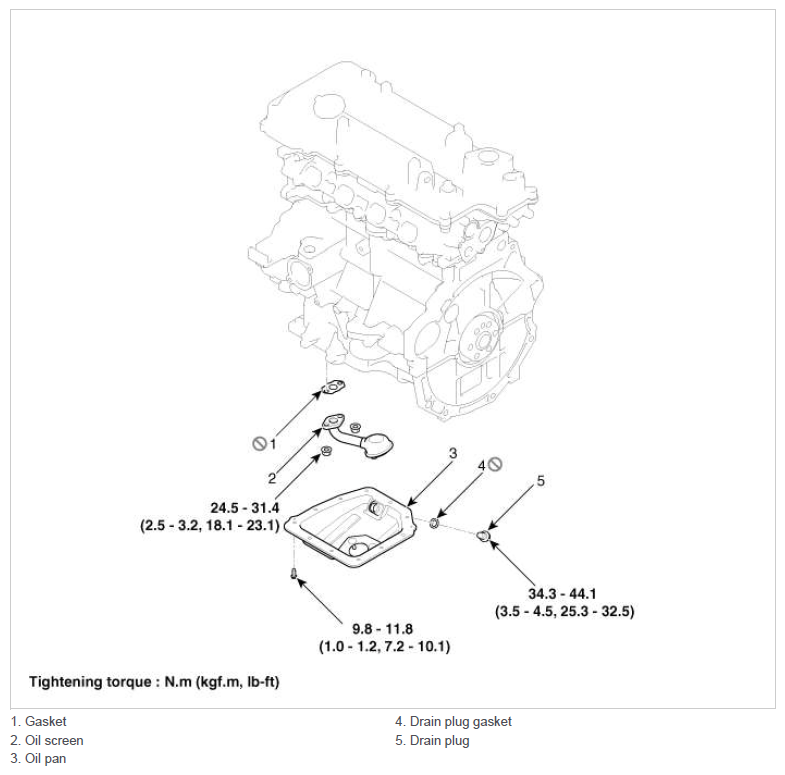

Fig 1: Locating Oil Pan Components With Torque Specification
G12594416Courtesy of HYUNDAI MOTOR AMERICA
