Components And Components Location: Components

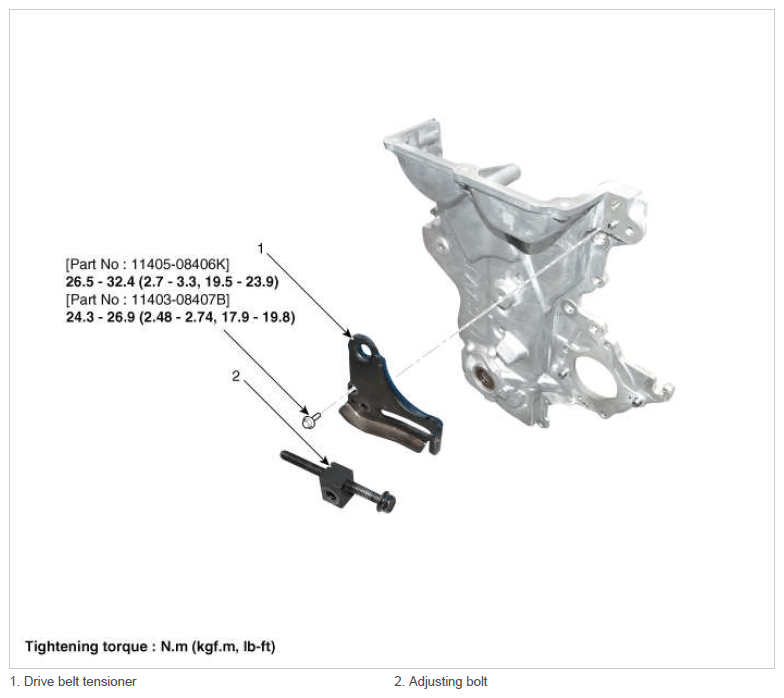

Fig 1: Locating Drive Belt Tensioner Components With Torque Specification
G12594155Courtesy of HYUNDAI MOTOR AMERICA
