Components And Components Location: Components

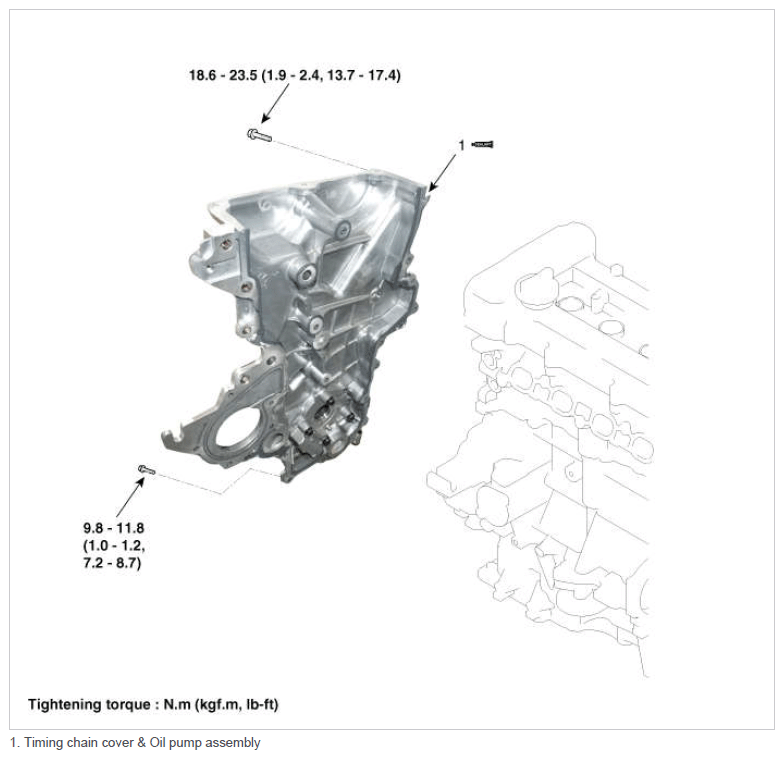

Fig 1: Locating Timing Chain Cover And Oil Pump Assembly Components With Torque Specification
G12594167Courtesy of HYUNDAI MOTOR AMERICA
