Home › Hyundai › 2018 › Accent SE, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Intake Air Temperature Sensor (IATS) › Repair Procedures › Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

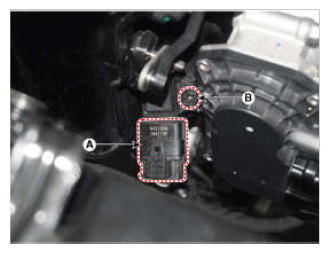

  2. Disconnect the manifold absolute pressure sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor from the surge tank.
G12598500Courtesy of HYUNDAI MOTOR AMERICA
