Shift Lever
›
Components And Components Location
›
Component Location
Component Location

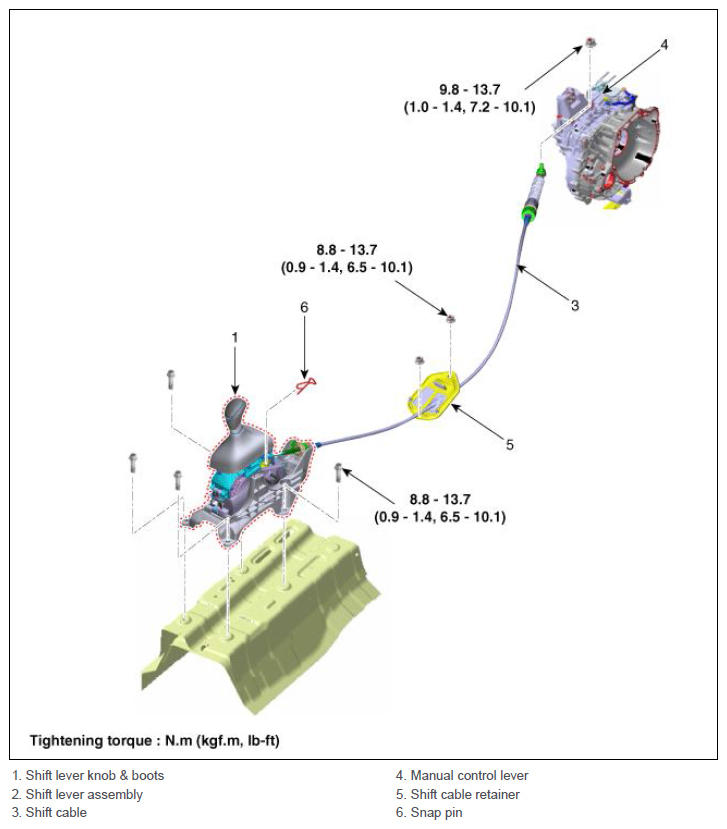

Fig 1: Shift Lever Components With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Tightening Torque: N.m (kgf.m, Ib-ft)
Courtesy of HYUNDAI MOTOR AMERICA
