Repair Procedures: Disassembly

Remove the rear cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting bolts (A) and disconnect the brush holder assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the slip ring guide (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the pulley (A) using the special tool.

Courtesy of HYUNDAI MOTOR AMERICA
Unsolder the 3 stator leads (A).

Courtesy of HYUNDAI MOTOR AMERICA

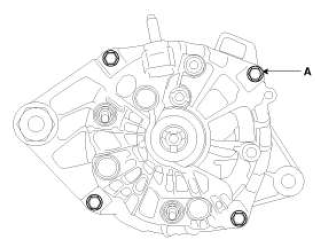

Loosen the 4 through bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

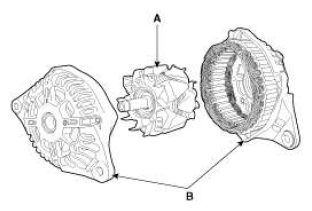

Disconnect the rotor (A) and bracket (B).

Courtesy of HYUNDAI MOTOR AMERICA
Reassembly is the reverse order of disassembly.
