Battery Tray
- Remove the Battery.
(Refer to "BATTERY ")
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the ECM.
(Refer to Engine Control System - "ENGINE CONTROL MODULE (ECM) ")

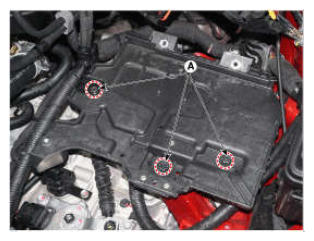

- Remove the battery tray after loosening the bolts (A).
