Components And Components Location
›
Components
Components And Components Location: Components

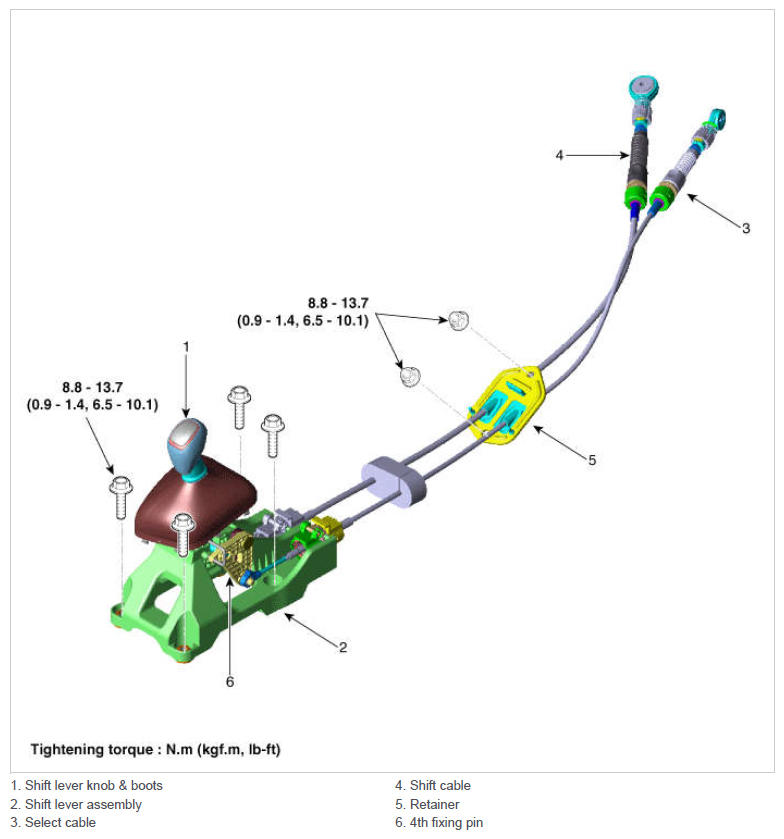

Fig 1: Locating Cable Components With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
