FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".

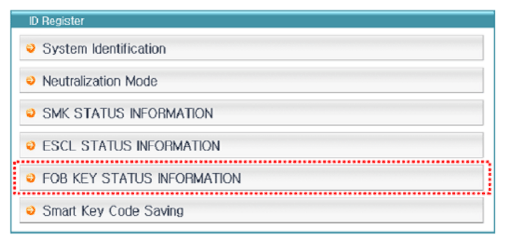

G12597600Courtesy of HYUNDAI MOTOR AMERICA

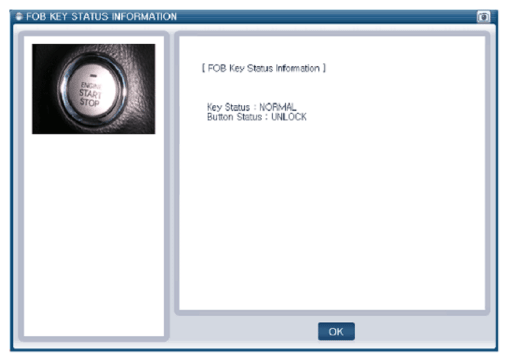

G12597601Courtesy of HYUNDAI MOTOR AMERICA
