Components And Components Location: Components

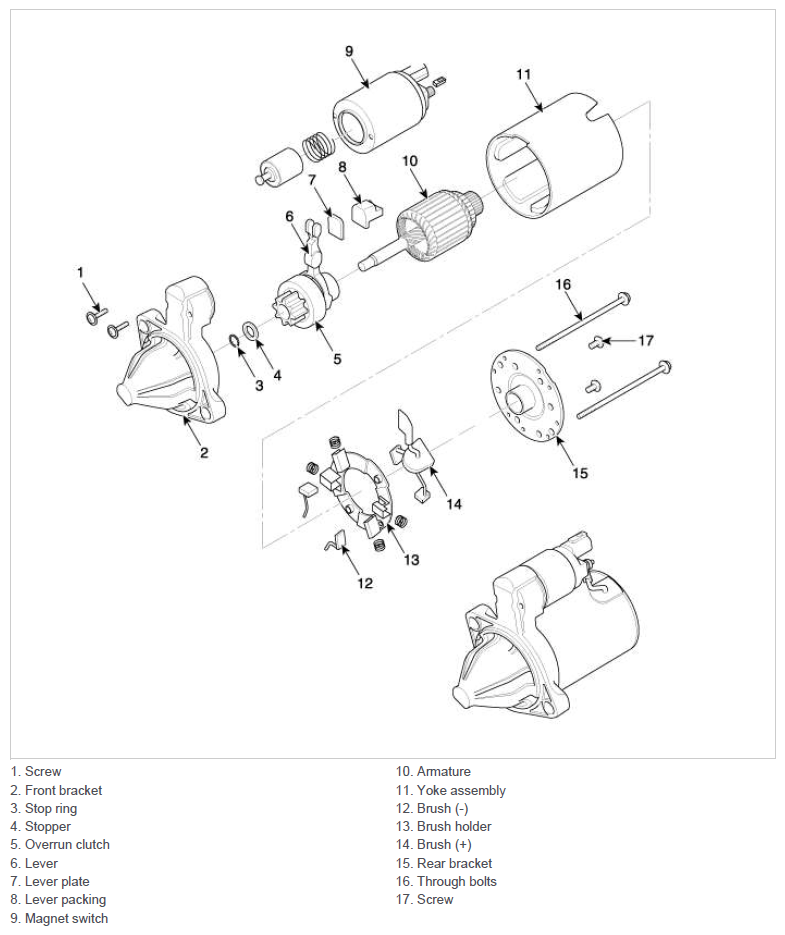

Fig 1: Engine Starter Assembly Exploded View
G12594566Courtesy of HYUNDAI MOTOR AMERICA
